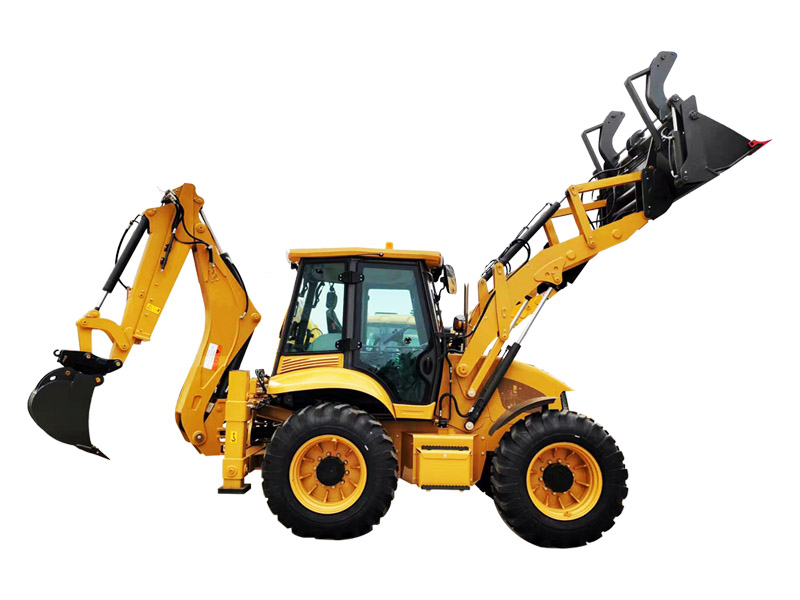

Backhoe excavator loader LC388K

Backhoe excavator loader LC388K

  • Home
  • Backhoe excavator loader LC388K

    • Backhoe excavator loader LC388K

    The excavator loader is a multi-purpose and high-efficiency small engineering machinery composed of a “tractor”, an excavator, and a loader.

    We're here to help: Easy ways to get the answers you need!

    Send Inquiry Online Chat

    Introduction

    The excavator loader is a multi-purpose and high-efficiency small engineering machinery composed of a "tractor", an excavator, and a loader.

    The excavator loader is a multifunctional and compact equipment, mainly used for excavation and loading. It can also be equipped with quick change devices. By replacing different accessories, it can achieve different functions such as crushing, drilling, snow removal, cleaning, etc. in addition to excavation and loading. It provides comprehensive solutions for customers in municipal emergency rescue, urban pipelines, landscaping, highways, and other industries.

    Backhoe excavator loader LC388K

    Features

    • Backhoe excavator loader LC388K

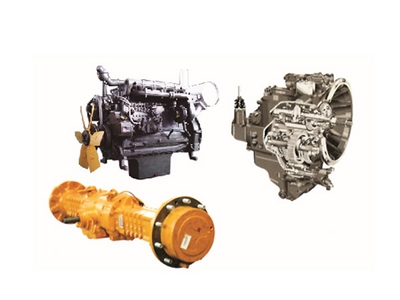

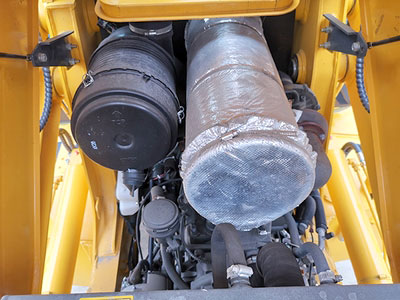

      Weichai or Cummins engine is adopted to deliver high digging force, superior performance, excellent energy-saving efficiency, low maintenance cost, outstanding reliability and durability.
    • Backhoe excavator loader LC388K

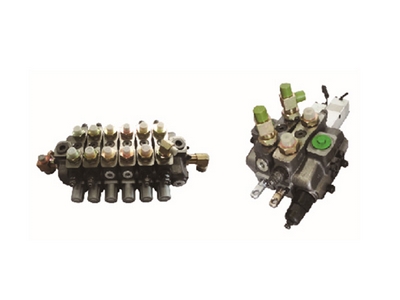

      Hydraulic system includes high quality hydraulic components from world's renowned brands to ensure reliable operation, and the additional hydraulic circuit allows to cope with the digging and loading works.
    • Backhoe excavator loader LC388K
      Maintenance-free wet brake system has dual brake pedals, which ensure smooth braking in limited spaces and tight corners.
    • Backhoe excavator loader LC388K

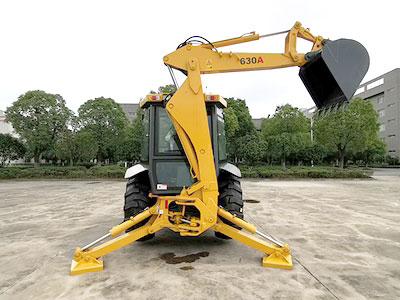

      The backhoe loader has eight-bar-linkage design to improve loading performance with powerful bucket breakout force and high work stability. More importantly, the automatic bucket leveling system helps operator maintain high work efficiency.
    • Backhoe excavator loader LC388K

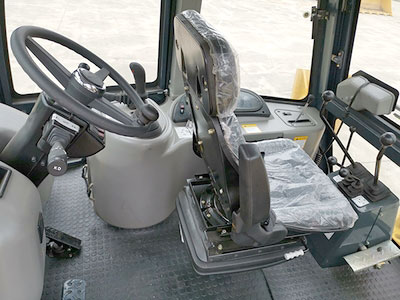

      FOPS/ROPS certified spacious cab provides excellent operator visibility.

    Technical parameters

    Machine Information
    1 Total length 6450±80mm
    2 Total width 2550±20mm
    3 Bucket width 2540mm
    4 Total height (cabin top) 3120±10mm
    5 Total height (digging boom top) 3940 ±20mm
    6 Wheel base 2335±10 mm
    7 Wheel tread 2139 ±10mm
    Load main technical parameter
    1 Rated load 2500KG
    2 Operating weight 10250kg
    3 Rated bucket capacity 1.2m³
    4 Max. Dumping height (41° dumping angle) 3050±50 mm
    5 Dumping distance 870±20 mm
    6 Turning radius Tires outside 5750±50mm
    Digging main technical parameters
    1 Rated digging bucket capacity 0.3m³
    2 Max. Digging depth 3820±20 mm
    3 Max. Digging radius 5345±20mm
    4 Loading height 3740±20mm
    5 Max. Digging force 5100kgf
    6 Max.Digging height 5470 ±20mm
    7 Lifting force at Max. Digging radius 1220kg
