LC216B Single Drum Vibratory Roller
16-ton mechanical-drive single-drum vibratory roller for heavy foundation compaction.
- Operating Mass
- 16,000 kg
- Engine Power
- 97 kW at 2,200 rpm
- Drum Width
- 2,100 mm
- Centrifugal Force
- 320 / 180 kN

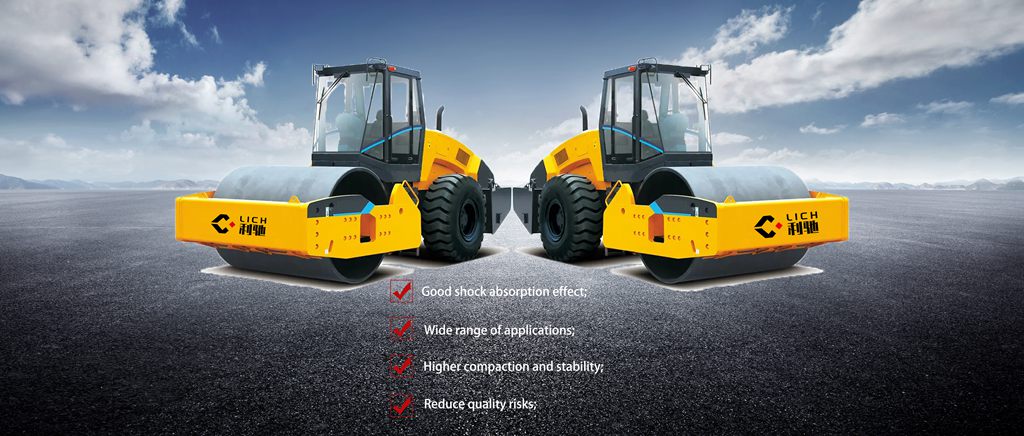

Road Roller for Sale: 24 Models from 0.3 to 30 t
LICH road rollers: single drum vibratory, tandem and pneumatic tyre models from 330 kg to 30 t, with Cummins engines and export shipping.
Road Roller Factory Export
LICH builds and exports single drum, tandem and pneumatic tyre road rollers for soil, base and asphalt compaction — with Cummins-powered models, spare parts and shipping handled for every order.
- 24 Road Roller Models
- 0.3–30 t Operating Mass Range
- 390 kN Top Centrifugal Force
- Single drum vibratory road rollers, 8–18 t
- Tandem drum rollers for asphalt, 0.56–14 t
- Pneumatic tyre rollers, ballast to 30 t
- Walk-behind rollers for trenches and paths
- Also: excavators, motor graders, loaders, bulldozers
Road roller models
LCD216H Single Drum Vibratory Roller
LICH LTD216H Full-Hydraulic Single Drum Vibratory Roller.
- Operating Weight
- 16000 kg
- Rated Power
- 110 kW / 2200 rpm
- Engine Model
- CUMMINS 6BT5.9
- Overall Dimensions
- 6025 x 2280 x 3050 mm
LCP1016H Pneumatic Tire Roller
10–16 t full-hydraulic pneumatic tire roller with a 4+5 tyre layout.
- Operating Mass
- 10,000 / 16,000 kg
- Engine Power
- 75 kW
- Tyre Layout
- 4 front + 5 rear
- Overall Dimensions
- 5,000 × 2,280 × 3,200 mm
LCD214H Single Drum Vibratory Roller
Full-hydraulic single-drum roller for heavy compaction work.
- Operating Mass
- 14,000 kg
- Engine Power
- 110 kW at 2,200 rpm
- Drum Width
- 2,100 mm
- Centrifugal Force
- 290 / 180 kN
LCS214H Single Drum Vibratory Roller
14-ton full-hydraulic single-drum roller for heavy compaction projects.
- Operating Mass
- 14,000 kg
- Engine Power
- 110 kW at 2,200 rpm
- Drum Width
- 2,100 mm
- Centrifugal Force
- 290 / 180 kN
LC212B Single Drum Vibratory Roller
12-ton mechanical-drive single-drum vibratory roller for large foundation compaction.
- Operating Weight
- 12000 kg
- Rated Power
- 97 kW /2200rpm
- Engine Model
- CUMMINS6BT5.9
- Overall Dimensions
- 5650x2280x3000mm
LCD212H Single Drum Vibratory Roller
Full-hydraulic single-drum roller for heavy compaction work.
- Operating Weight
- 12000 kg
- Engine Model
- CUMMINS6BT5.9
- Overall Dimensions
- 5650x2280x3000mm
- Travel Speed
- 0-12 km/h
LCS212H Single Drum Vibratory Roller
12-ton full-hydraulic single-drum roller for heavy road and foundation compaction.
- Operating Mass
- 12,000 kg
- Engine Power
- 110 kW
- Drum Width
- 2,100 mm
- Centrifugal Force
- 260 / 160 kN
LC210B Single Drum Vibratory Roller
Mechanical-drive single-drum vibratory roller for large foundation compaction.
- Weight Class
- 10 t
- Rated Power
- 97 kW /2200rpm
- Engine Model
- CUMMINS6BT5.9
- Overall Dimensions
- 5650x2280x3000mm
Which Road Roller Fits the Job?
A road roller compacts soil, aggregate base and asphalt with static weight, drum vibration or kneading tyres. The right type depends on the material and the layer you are building.
Single drum vibratory road roller
8–18 t ride-on, 330 kg walk-behind. A smooth steel drum at the front and driven tyres at the rear. High amplitude and centrifugal force drive compaction deep into soil, sand, gravel and rock fill for road bases, embankments, dams and airport foundations.
Tandem double drum road roller
0.56–14 t. Two vibrating steel drums leave an even surface on asphalt and thin base layers. Walk-behind and 1–3 t ride-on tandems work on paths, trenches and patch repairs; heavier tandems finish highway asphalt.
Pneumatic tyre road roller
10–30 t with ballast. Rubber tyres knead and seal asphalt wearing courses and chip seals. Adding ballast raises the operating mass, so one machine covers both light and heavy passes.
How to choose a road roller
- Soil, sand and rock fill: a 12–18 t single drum vibratory road roller with high amplitude.
- Asphalt base and wearing course: a tandem drum roller for breakdown and finish passes, then a pneumatic tyre roller to seal.
- Trenches, sidewalks and small patches: a walk-behind or 1–3 t ride-on tandem roller.
Road roller specifications at a glance
| Model | Type | Operating mass | Drum width | Engine |
|---|---|---|---|---|
| LC216B | Single drum | 16,000 kg | 2,100 mm | Cummins 6BT5.9 |
| LCD216H | Single drum | 16,000 kg | 2,100 mm | Cummins 6BT5.9 |
| LCP1016H | Pneumatic tyre | 10,000 / 16,000 kg | — | — |
| LCD214H | Single drum | 14,000 kg | 2,100 mm | Cummins 6BT5.9 |
| LCS214H | Single drum | 14,000 kg | 2,100 mm | Cummins 6BT5.9 |
| LC212B | Single drum | 12,000 kg | 2,100 mm | Cummins 6BT5.9 |
| LCD212H | Single drum | 12,000 kg | — | Cummins 6BT5.9 |
| LCS212H | Single drum | 12,000 kg | 2,100 mm | Cummins 6BT5.9 |
| LC210B | Single drum | 10 t | — | Cummins 6BT5.9 |
| LCD210H | Single drum | 10,000 kg | — | Cummins 6BT5.9 |
| LC208 | Tandem drum | 8,000 kg | — | Cummins 4BT3.9 |
| LCS208H | Single drum | 8,000 kg | 1,700 mm | Cummins 4BT3.9 |
| LC1200 | Tandem drum | 3,000 kg | 1,200 mm × 2 | — |
| LC1100 | Tandem drum | 2,500 kg | 1,100 mm × 2 | — |
| LC1000 | Tandem drum | 2,000 kg | 1,000 mm × 2 | — |
| LC900 | Tandem drum | 1,500 kg | 900 mm × 2 | — |
| LC800 | Tandem drum | 1,200 kg | 800 mm × 2 | — |
| LC700Z | Tandem drum | 800 kg | 700 / 500 mm | — |
| LC600 | Tandem drum | 560 kg | 600 mm × 2 | — |
| LC600 | Single drum | 330 kg | 600 mm | — |
| LTC203 | Tandem drum | 3,300 kg | 1,250 mm | Changchai ZN390B |
| LC214 | Tandem drum | 14,000 kg | 2,100 mm | Cummins 6BT5.9 |
| LCS718H | Single drum | 18,000 kg | 2,130 mm | WP6G190 |
| LCP2030H | Pneumatic tyre | 20,000–30,000 kg | — | 6BTA5.9 |
Other LICH machines
- Excavators for Construction and Earthmoving
- Motor Graders for Road Construction
- Loaders for Material Handling
- Crawler Bulldozers for Earthmoving
- Backhoe Loaders for Digging and Loading
ROAD ROLLERS
READY TO QUOTE
Send your material, layer thickness and job size — LICH matches the road roller model and writes the full configuration into your quotation.
SUPPORT FOR
INTERNATIONAL BUYERS
FROM INQUIRY TO YOUR JOB SITE
From road roller selection to shipping: a clear sequence for requirement review, quotation, order follow-up and delivery.
Inquiry
Tell us the machine type, quantity and destination.
Model Review
The model and requested configuration are reviewed.
Quotation
Specifications and commercial terms are confirmed in writing.
Order Follow-Up
Order progress and available documents are coordinated.
Shipping
Packing and shipping requirements are confirmed by order.
Support
Parts and document requests are matched to the machine model.
ENGINEERING MACHINERY
EXPORT SUPPORT
Direct company contact
One contact path from initial requirement to quotation follow-up
Product knowledge support
Structured information for equipment and attachment discussions
OEM / ODM coordination
Branding and configuration discussed against confirmed requirements
Export communication
Packing, documentation and shipment needs checked before order
EXPORT SUPPORT
LICH ships road rollers and other machines from China to buyers worldwide.
ROAD ROLLER QUESTIONS
What road roller sizes does LICH supply?
From a 330 kg walk-behind single drum roller to 18 t single drum vibratory rollers, tandem drum rollers up to 14 t and pneumatic tyre rollers ballasted up to 30 t.
Which road roller is best for asphalt?
Tandem double drum rollers make the breakdown and finish passes on asphalt, and a pneumatic tyre roller seals the surface. For soil and aggregate base, choose a single drum vibratory road roller.
Which engines are fitted to LICH road rollers?
Most ride-on single drum models use the Cummins 6BT5.9 and the 8 t models the Cummins 4BT3.9. The 18 t LCS718H uses a 140 kW WP6G190 engine and the LTC203 a Changchai ZN390B. Each product page lists the engine and rated power.
What do you need for a road roller quotation?
The material to compact (soil, base or asphalt), layer thickness, job size, preferred operating mass, quantity and destination port. LICH replies with the matching model and a written quotation.
Can I order road roller spare parts?
Yes. Send the model, serial number and photos of the part; LICH quotes matching spare parts with the machine or for later orders.
Does LICH supply other construction machines?
Yes. LICH also supplies excavators, motor graders, loaders, crawler bulldozers and backhoe loaders, listed on the products page.
