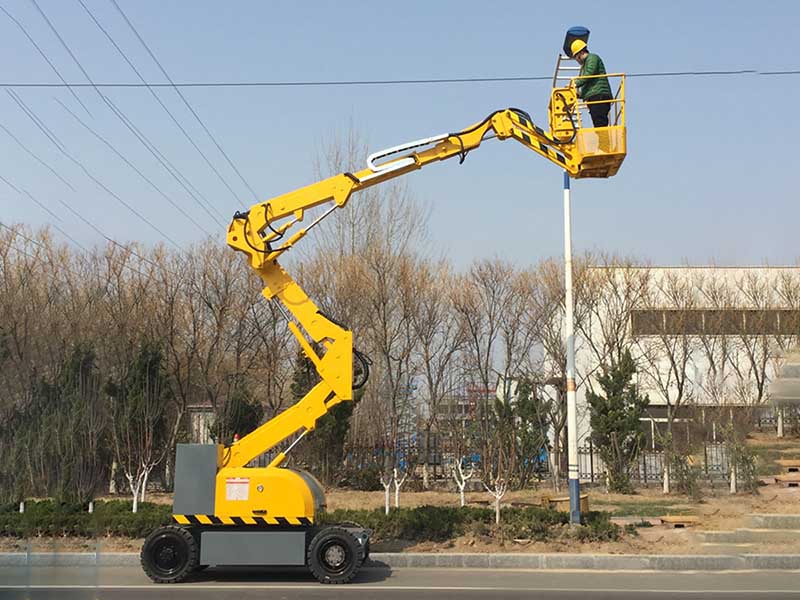

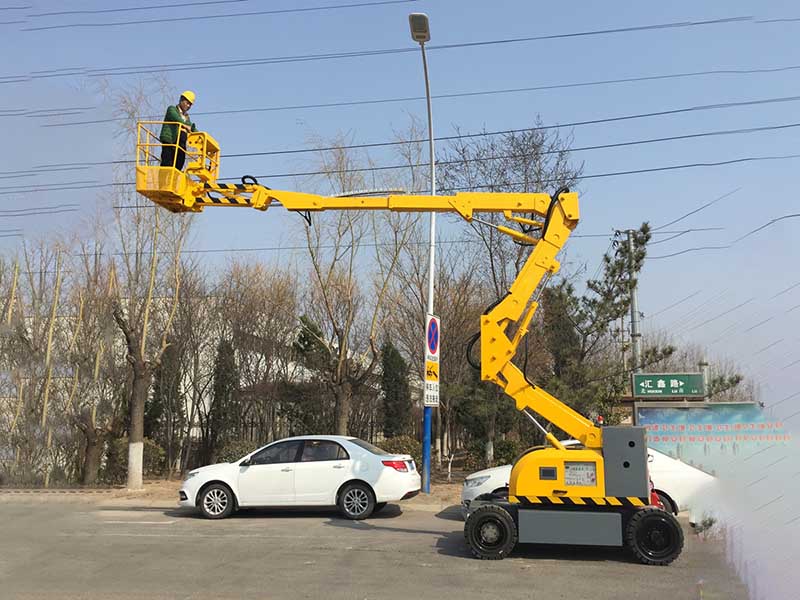

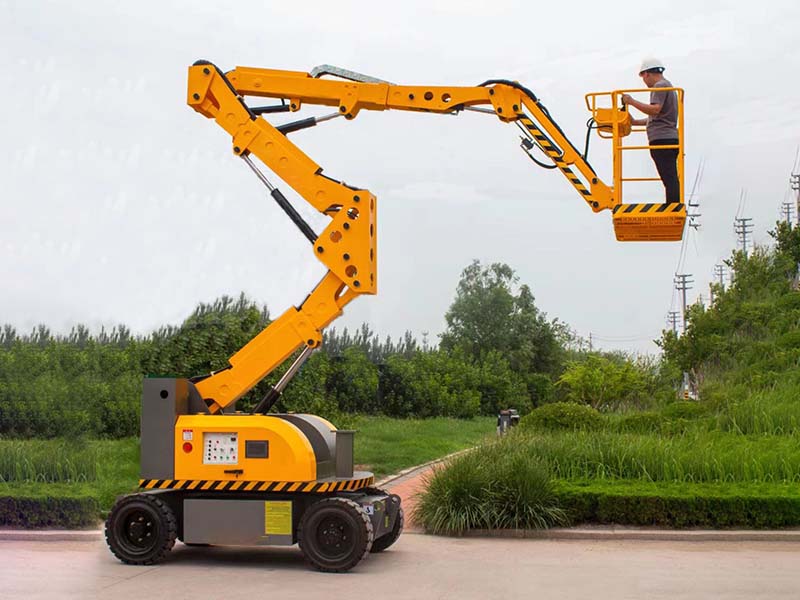

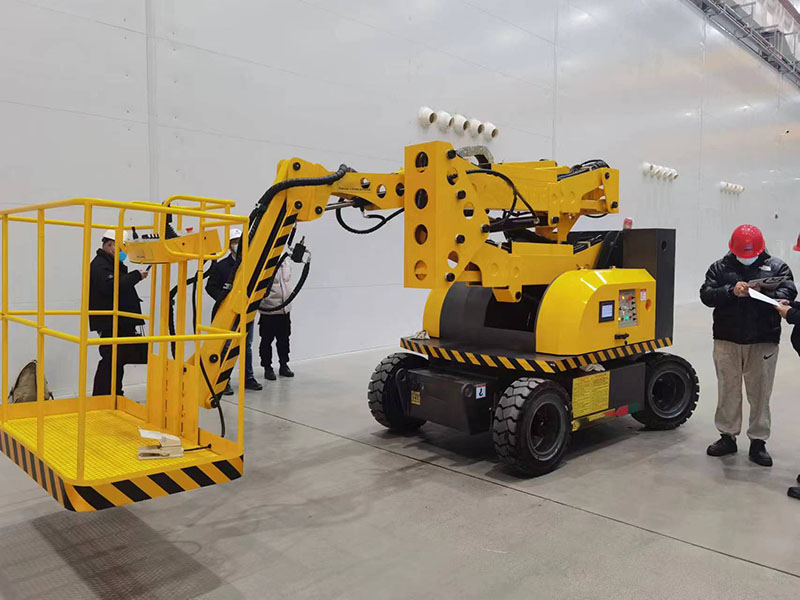

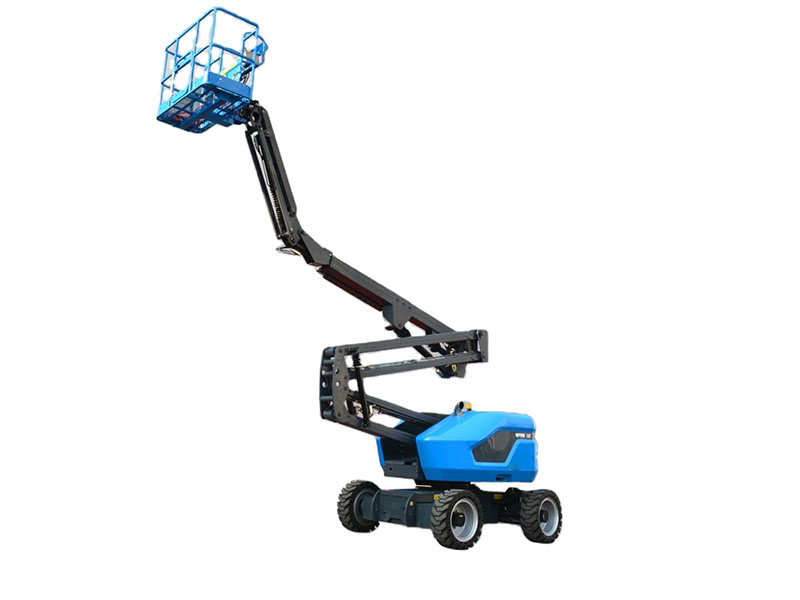

Curved Arm lifting platform

Product Overview

The fully automatic curved arm lifting platform has smooth lifting and coordination, flexible steering, strong load-bearing capacity, and is deeply loved by customers.

The effective geometric design and ultra long crossing radius, coupled with 355 ° non continuous rotation, enable this model to effectively avoid difficult obstacle operations. Convenient to use, low noise, the workbench can be raised and horizontally extended with a large span, increasing the working area. The lifting height of 8-20 meters allows for full height walking, lifting, walking, rotating, and climbing, which can be completed by only one person. Widely used in factories, hotels, buildings, shopping malls, airports, docks, sports venues, etc. Can be used for maintenance of equipment, painting and decoration, maintenance of lighting fixtures, electrical appliances, cleaning and maintenance, installation and maintenance of elevated pipelines, high-altitude cleaning, etc.

Characteristic

1. The equipment is made of high-strength manganese steel, which has high hardness, good wear resistance, is not easily deformed, and has a long service life.

2. Possess climbing ability (25 °), walking on slopes, flexible parking operation, good parking and micro motion performance.

3. The equipment tires are solid core tires, which have advantages such as good wear resistance, less deformation, reduced maintenance frequency, and long service life.

Parameter

Self bending arm length : 18 meters

Maximum platform height ：18 meters

Maximum working height ：20 meters

Load Weight : 230kg

Dimension of worktable : 1.88 * 0.78m

Maximum external dimensions : 8.4 * 2.28 * 2.6m

Walking motor : AC8.5kw/48V

Lifting motor：5.5Kw/DC48V

The height of the workbench from the ground after contraction：100mm

Walking speed (in the closed state)：4Km/h
