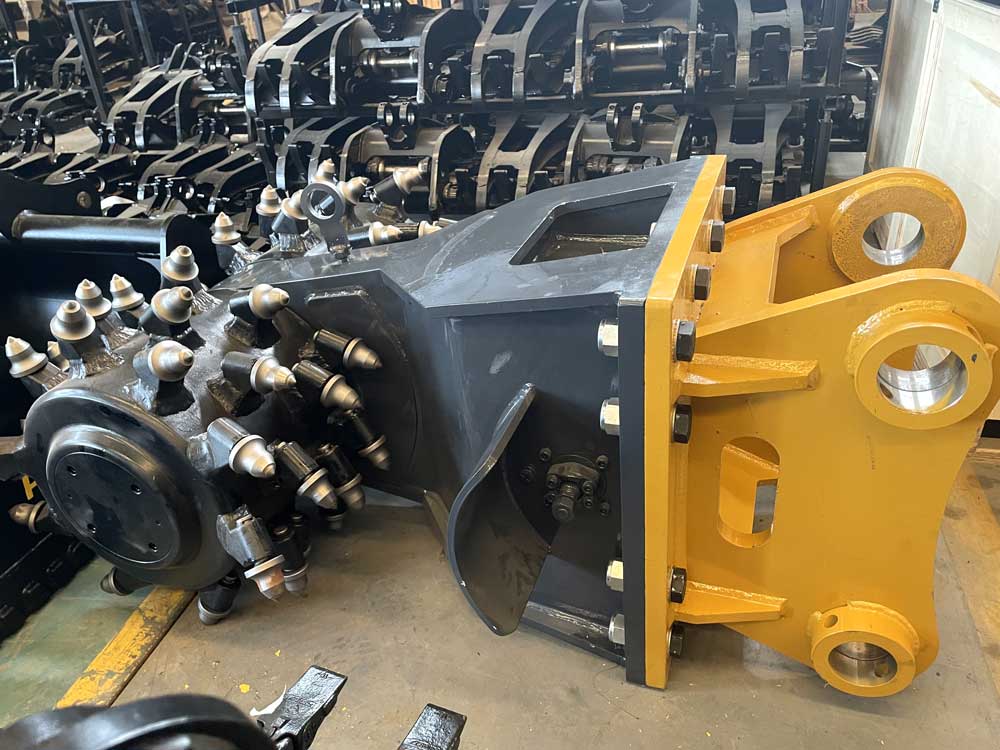

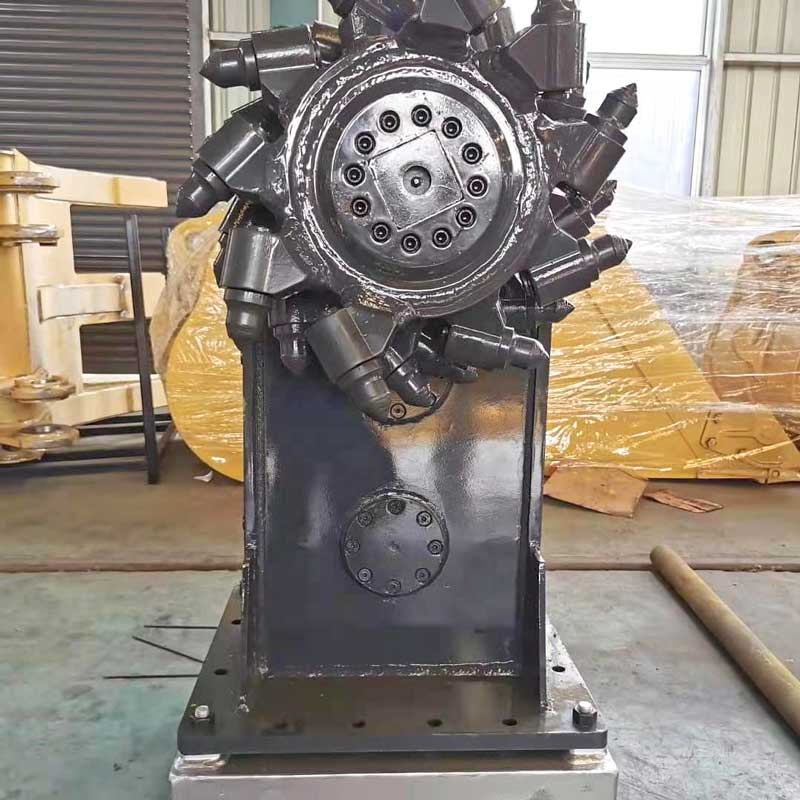

Cutting Rotary Drum Cutters – LCMD
Excavator drum cutter, milling machines, are divided into horizontal and vertical milling machine. It is widely used in open-pit coal mine, tunnel excavation and outline correction, channel groove milling and digging, asphalt concrete pavement milling, rock digging, toots milling, milling of permafrost, iron and steel industry, forestry and other construction field.
We're here to help: Easy ways to get the answers you need!
Excavator drum cutter, milling machines, are divided into horizontal and vertical milling machine. It is widely used in open-pit coal mine, tunnel excavation and outline correction, channel groove milling and digging, asphalt concrete pavement milling, rock digging, toots milling, milling of permafrost, iron and steel industry, forestry and other construction field.
| Model | LCMD80 | LCMD150 | LCMD240 | LCMD350 | LCMD450 |
| Operating Weight（kg） | 372 | 845 | 1340 | 1860 | 2620 |
| Input Power（kw） | 25 | 30 | 52 | 60 | 120 |
| Max. Power（kw） | 34 | 40 | 62 | 70 | 140 |
| Max. Operating Power（bar） | 350 | 350 | 350 | 350 | 350 |
| Oil Flow（I/min） | 30-50 | 60-90 | 80-140 | 140-210 | 260-450 |
| Cutting Speed（rpm） | 120-200 | 90-130 | 65-113 | 50-9 | 40-70 |
| Cutting Head Torque（Nm） | 3200 | 5800 | 10900 | 24000 | 36000 |
| Cutter Dia.（mm） | 360 | 460 | 590 | 620 | 730 |
| Carrier Weight（tons） | 3.0-8.0 | 8.0-15.0 | 15.0-24.0 | 18.0-35.0 | 30.0-45.0 |
Please send us your request and we will reply to you within 24 hours.
Reach out to us anytime and we'll happily answer your questions.
Tel
+86-371-86663455
Demolition grapple is a light duty hydraulic grapple that can be used to the maximum extent for various sorting and handling jobs. Demolition grapple can also be applied to some lighter demolition tasks, such as the demolition of brick and wood structures.
Special for the mantle rock, clay, sandy stratum and weathered layer. Ripper also can be named digging ripper. It is used for digging hard soil, frozen soil, soft rock, weathered rock and cracked rock. It also can remove the root of the trees and other barries.
Excavator mechanical wood grapple is driven by the excavator bucket cylinder without the need to add additional hydraulic blocks and pipelines. Mechanical grapple is suitable for waste metal treatment, stone, wood loading and unloading and handling.
Hydraulic grapple to handle all sorts of materials in recycling or demolition applications using the strength of your excavator. It is available in a wide-range of widths and tine configurations.Each version made specifically for the user’s needs.
