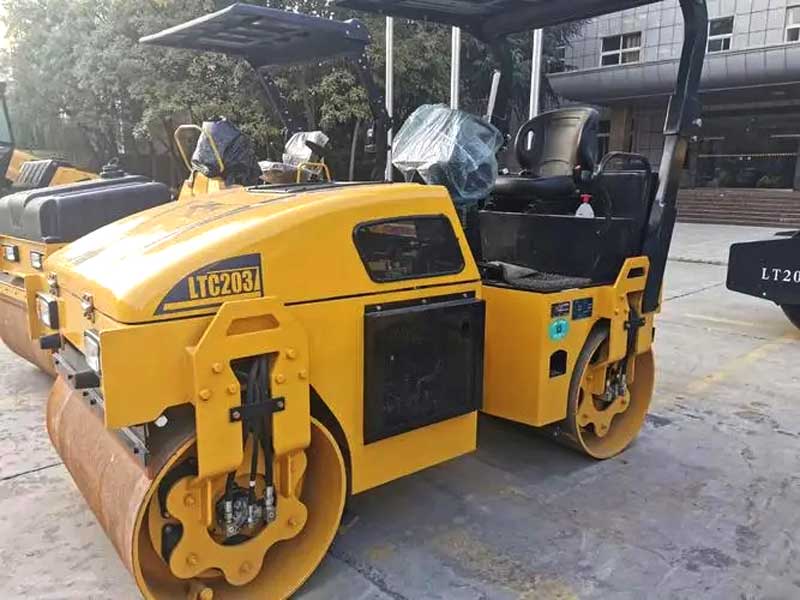

Double drum road roller

Introduction

1. These rollers have drums at the front and back of the machine that serve as compactors and wheels. Unlike its single drum roller counterpart, double drum rollers have no tires. The drums are located underneath the body, enabling the operator to compact materials from in front and behind simultaneously.2. Double drum rollers are generally used for asphalt compaction tasks that require more speed and power, such as when flattening and paving large sections of a highway during road construction projects.3. Efficiency: The double roller's design generates more power and enables you to flatten twice the surface area at once. Twin drum models also have larger, more robust engines than single rollers. Consider the double drum roller if your job requires maximum power and efficiency, such as when performing heavy-duty asphalt applications or compacting soil sub-bases.4. Control: The rear tires make a single drum roller easier to maneuver and provide more traction on uneven surfaces. This roller type also has a more compact design, providing more control when working in confined areas

5. Versatility: In general, a single drum roller can work well for a wider variety of projects. However, the front-heavy design could prevent it from rolling over some surfaces.

Features

♦Articulated connection,flexible steering and small turning radius ,It adopted the hydraulic braking ,safe and dependable
♦The nose of the roller is narrow with an excellent turning sight
♦A sprinkling set is equipped for evenly sprinkling water on the surfaces front and rear drums

Technical parameters

Model	LHC3	LHC4	LHC6	LHC10
Operation weight	3000kg	4000kg	6000kg	10000kg
Vibration frequency	50Hz	50Hz	46Hz	65Hz
Engine power	21kw	26.5kw	42kw	75kw
Front drum width	1250mm	1090mm	1320mm	1730mm
Travelling speed	5.6km/h	7.8km/h	2.5/7.5km/h	15km/h
Grade ability	20°	20°	20°	25°
Overall dimension	3020*1310*2600mm	2830*1290*2650mm	3690*1600*2700mm	4558*1840*2830mm
