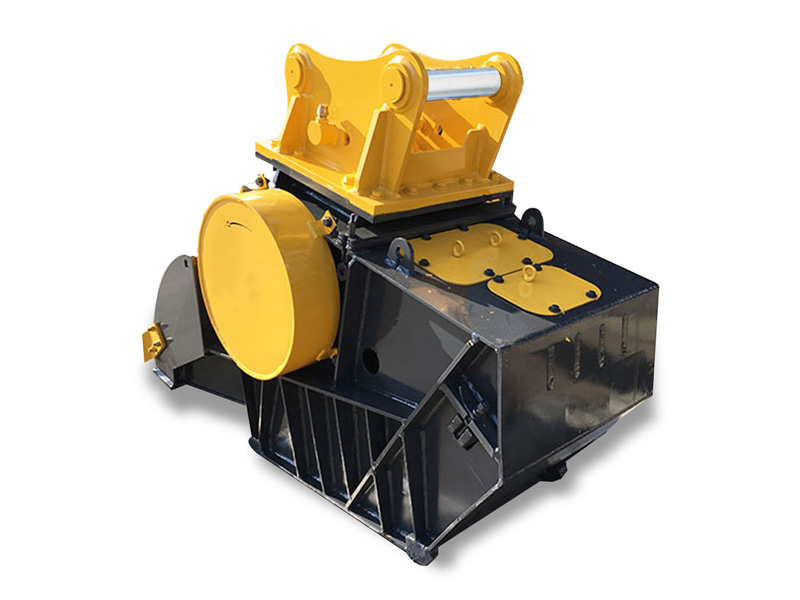

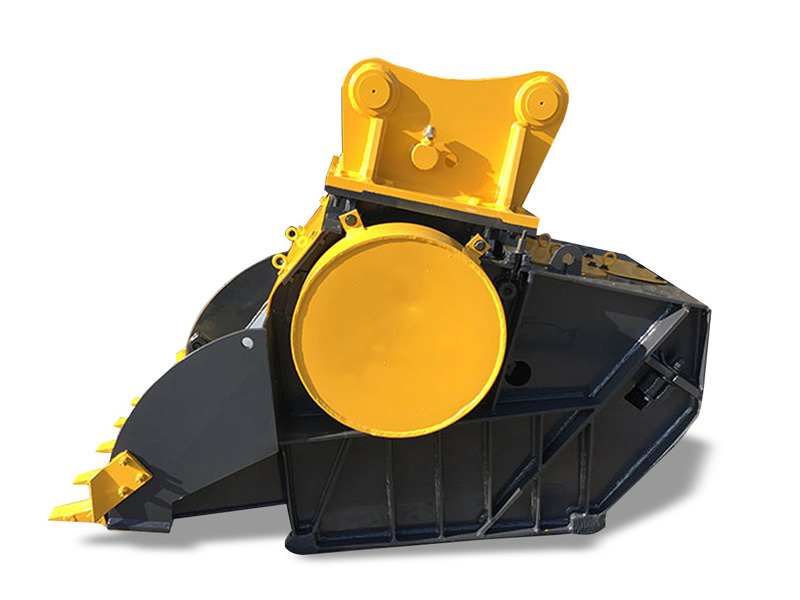

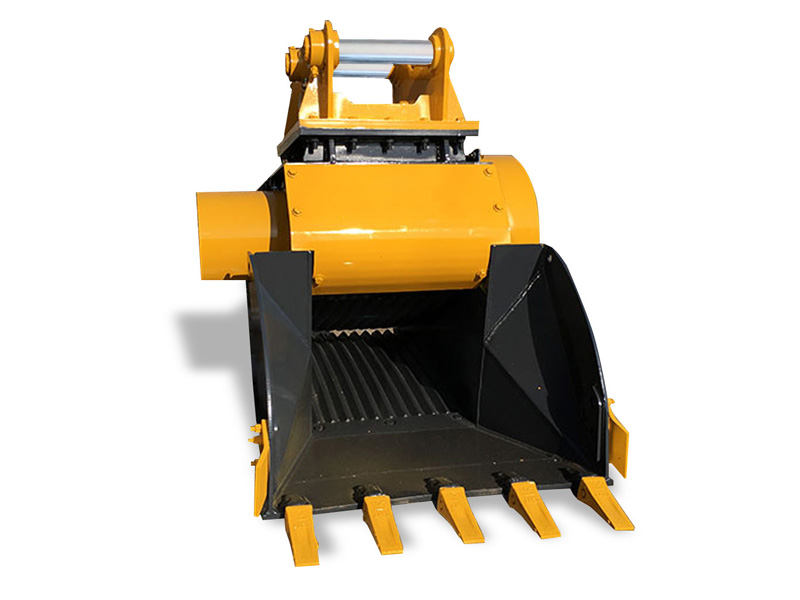

Excavator Stone Jaw Crusher bucket

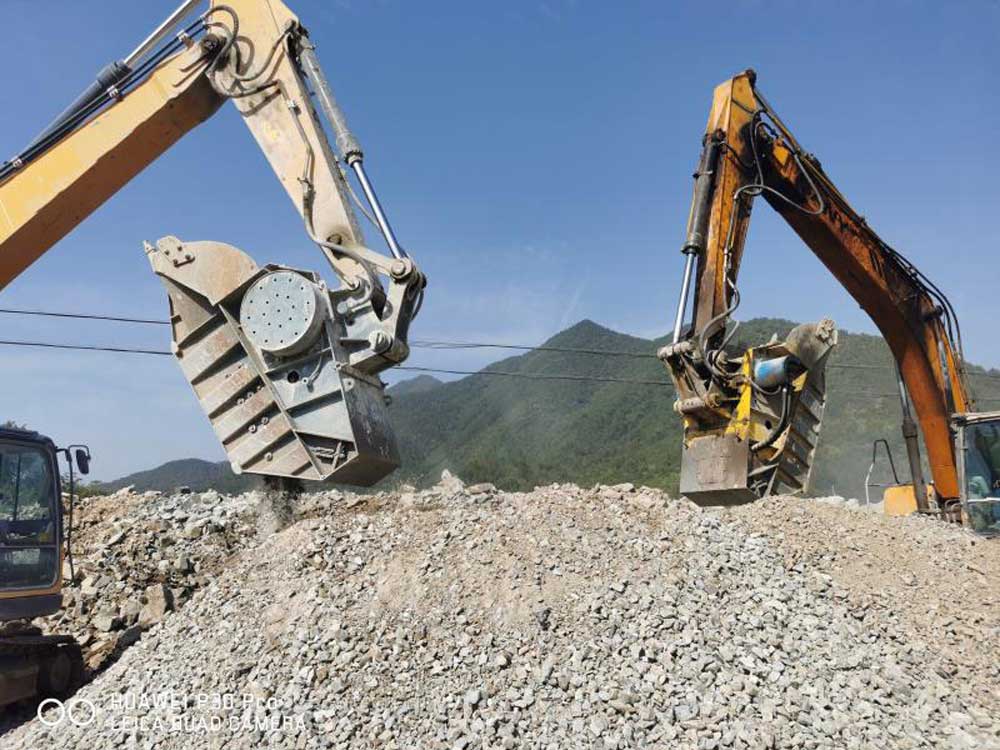

Crusher Bucket is usually installed on the excavator, using the hydraulic power of the excavator, relying on the strong pinch of the upper and lower jaws to crush the stone, which can crush the stone and construction waste, and can quickly separate the steel bars in the concrete, which can reduce the handling of concrete blocks on the project site.
We're here to help: Easy ways to get the answers you need!
Crusher Bucket is usually installed on the excavator, using the hydraulic power of the excavator, relying on the strong pinch of the upper and lower jaws to crush the stone, which can crush the stone and construction waste, and can quickly separate the steel bars in the concrete, which can reduce the handling of concrete blocks on the project site. The transportation and other engineering costs caused by the crushed stone have prompted the concrete waste to be directly recycled and reused on the construction site.
| Model | LCSD-70 | LCSD-120 | LCSD-200 | LCSD-300 | LCSD-670 | LCSD-870 |
| Excavator weight (t) | 6-10 | 10-18 | 18-30 | 30-45 | 50-70 | 75-90 |
| Bucket capacity(m³) | 0.2 | 0.45 | 0.74 | 1.15 | 1.47 | 2.23 |
| Oil Flow (l/min) | 40-45 | 80-100 | 180-200 | 260-280 | 340-360 | 440-460 |
| Feeding Size(mm) | 400*330 | 400*550 | 500*700 | 500*1000 | 670*1150 | 670*1316 |
| Whole Size(mm) | 1630*1013*1150 | 1950*1120*1500 | 2506*1325*1730 | 2346*1576*1665 | 2882*2105*2137 | 2882*2271*2137 |
| Overall Weight (kg) | 880 | 1360 | 3450 | 4220 | 6850 | 7668 |
Please send us your request and we will reply to you within 24 hours.
Reach out to us anytime and we'll happily answer your questions.
Tel
+86-371-86663455
Thumb Bucket used in a variety of applications including the handling of disposable waste, brush,logs, construction debris, stones, pipes, landscape works and many others.
Hydraulic grapple to handle all sorts of materials in recycling or demolition applications using the strength of your excavator. It is available in a wide-range of widths and tine configurations.Each version made specifically for the user’s needs.
Special for the mantle rock, clay, sandy stratum and weathered layer. Ripper also can be named digging ripper. It is used for digging hard soil, frozen soil, soft rock, weathered rock and cracked rock. It also can remove the root of the trees and other barries.
Excavator mechanical wood grapple is driven by the excavator bucket cylinder without the need to add additional hydraulic blocks and pipelines. Mechanical grapple is suitable for waste metal treatment, stone, wood loading and unloading and handling.
