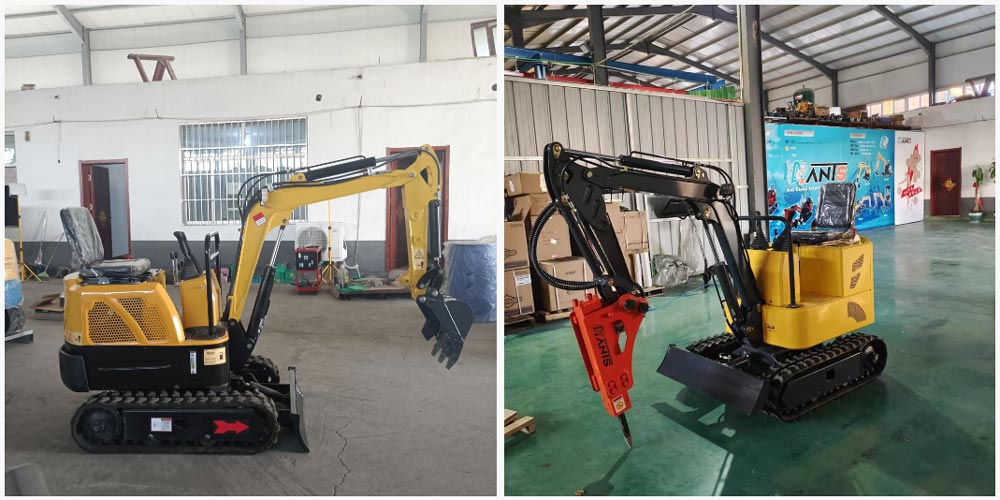

Hydraulic Crawler Excavator LC 27

Introduction

The LC 27 is powered by a robust Yanmar 3TNV80F three-cylinder engine, delivering an impressive power output of 14.6kW at 2400rpm. This engine is highly regarded for its durability and efficiency, ensuring consistent performance even in the toughest working conditions.

Travel System:

Equipped with Eddie travel motors, this excavator offers smooth and controlled movement. It features three track rollers on each side, enhancing stability, and 42 track shoes in total. With a travel speed ranging from 2 to 3.1 km/h and a drawbar pulling force of 29kN, it can navigate various terrains with ease, including slopes up to 30 degrees.

Hydraulic System:

The hydraulic system is powered by an impressive Hengli variable plunger pump, delivering a maximum discharge flow of 87L/min. With this advanced system, you can expect precise and responsive operation for all your digging and other tasks.

Swing System:

The LC 27 swing system incorporates a Hengli swing motor, providing a versatile swing speed range from 0 to 10 rotations per minute (r/min). This awesome feature enables efficient and controlled maneuverability, even in tight spaces!

Digging Force:

According to ISO6015 standards, this excavator packs an impressive punch when it comes to digging forces: 24kN for bucket digging and 14.8kN for arm digging. With these forces, it's more than capable of handling a wide range of excavation tasks.

Bucket:

The excavator comes with a standard bucket with a 0.06m3 capacity and a 490mm width, making it ideal for efficient material handling and digging operations.

Operating Weight and Ground Pressure:

With an operating weight of 2680kg, the LC 27 exerts a ground pressure of 26.3kPa, ensuring minimal impact on the ground during operation.

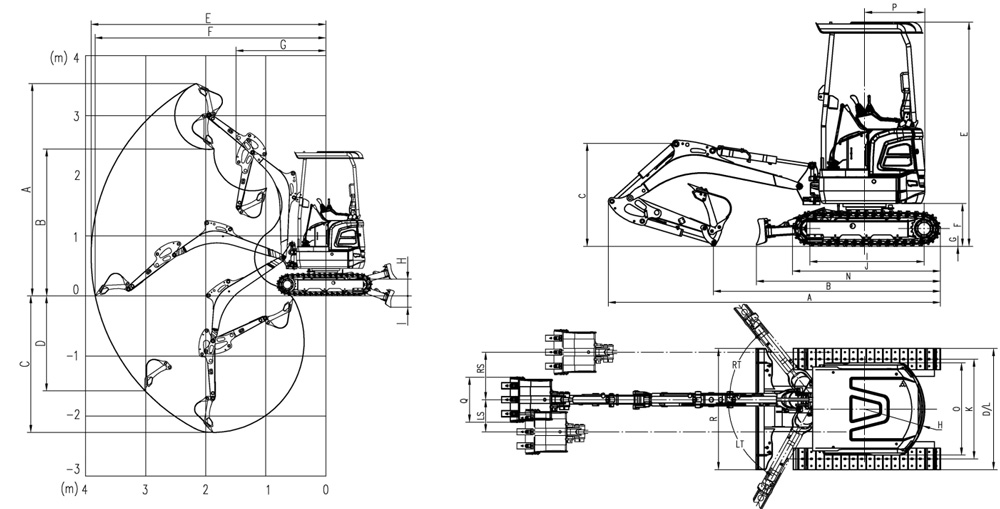

Scope of Work:

The excavator's impressive range of motion includes a maximum digging height of 4390mm, a maximum dumping height of 3060mm, and a maximum digging depth of 2800mm, allowing it to tackle a wide range of excavation tasks.

Features

Dimensions:

Compact in design, the LC 27 measures 4200mm in overall length and has an overall width of 1550mm. It stands at 2480mm in height to the top of the cab, with a ground clearance of 300mm. The excavator's tail swing radius is 775mm, enhancing maneuverability in confined spaces.

Reliability and Convenience:

The LC 27 is built for reliability and ease of maintenance, with a 33L fuel tank, 5L cooling system, and a 22L hydraulic oil tank. With a robust design and high-quality components, it's a durable and dependable choice for construction professionals.

Technical parameters
