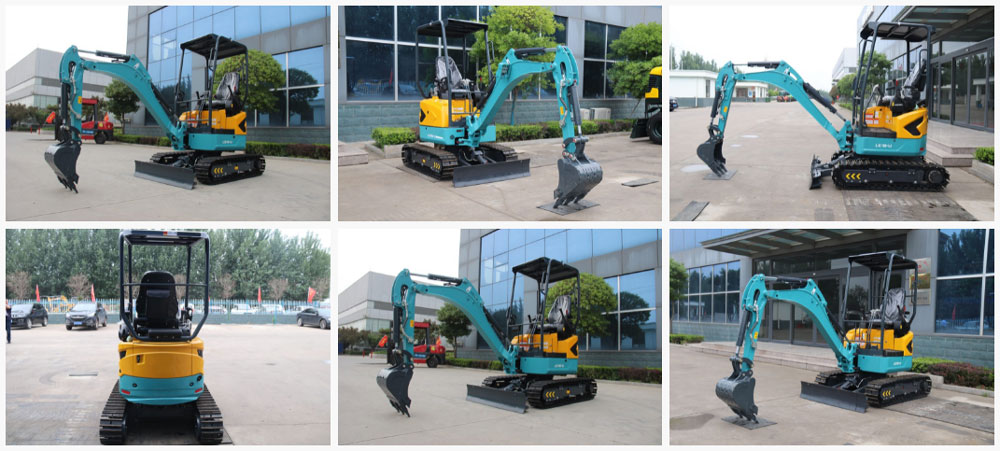

Hydraulic Crawler Excavator LC18

Introduction

This hydraulic crawler excavator is well-suited for various applications including construction, landscaping, utility work, and more. Its versatility, power, and precision make it an ideal choice for contractors seeking reliable machinery.

Engine:

Powered by the Yanmar 3TNV74F engine, a three-cylinder direct injection powerplant with a displacement of 0.993L, the excavator combines reliability and power. With a power output of 11.2kW at 2400rpm, it ensures efficient operation.

Travel System:

Equipped with the Eddie FTM01A travel motors, the excavator offers a travel speed range of 2.2 to 4.3 km/h. Its impressive drawbar pulling force of 18kN and gradeability of 58% make it suitable for various terrains.

Hydraulic System (Hengli HVSE):

The excavator features a Hengli HVSE-09 main valve and Hengli HP5VS28 variable plunger pump, ensuring smooth and precise hydraulic performance. This system facilitates efficient digging and lifting operations.

Swing System:

With a Danfoss Eaton swing motor (SW2.5K-195), the excavator offers a swing speed range of 0 to 9.5 rotations per minute. This responsive system ensures accurate positioning for intricate tasks.

Digging Force and Operating Weight:

The LC18 boasts substantial digging force, with a bucket digging force of 16kN and an arm digging force of 9.5kN. Its operating weight of 1800kg ensures a balanced combination of power and maneuverability.

Bucket and Dimensions:

The excavator is equipped with a standard GP bucket with a capacity of 0.04m3 and a width of 450mm. Its compact dimensions, including a maximum digging depth of 2270mm and a maximum digging radius at ground level of 3845mm, enable it to navigate tight spaces while achieving impressive reach.

Features:

The LC18 incorporates key features such as reliable track rollers, effective track shoes (37x2), and a comprehensive cooling system (5L). Its intuitive control system ensures operator comfort and productivity.

Technical parameters
