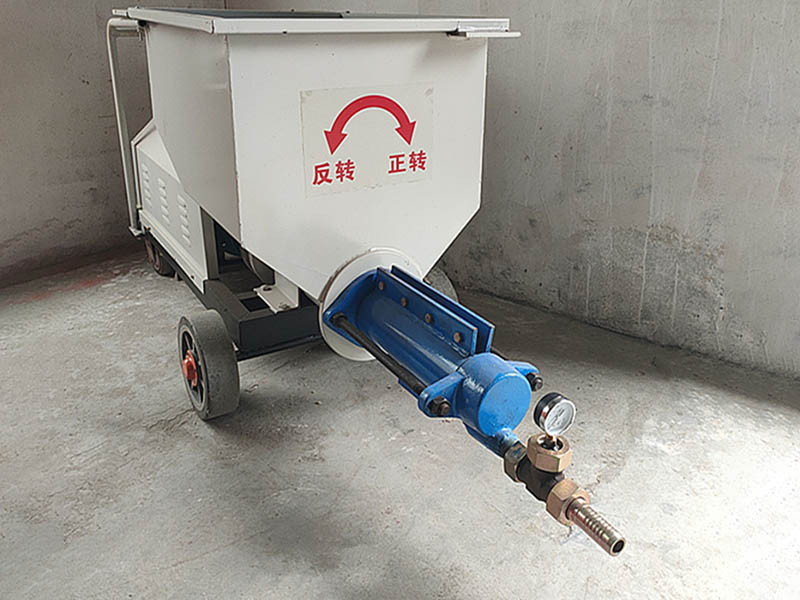

LC-5000 Grouting Pump
Grouting pump wheeled design, easy to move, easy to operate, easy to use and maintain later. The grouting pump on the site of strong practicality, on the cement slurry, thick slurry, mortar pumping adaptability range.
We're here to help: Easy ways to get the answers you need!
1. Grouting pump wheeled design, easy to move, easy to operate, easy to use and maintain later.
2. The grouting pump on the site of strong practicality, on the cement slurry, thick slurry, mortar pumping adaptability range.
3. Type grouting pump main parts of the stator sleeve and rotor wear-resistant, high precision machining, the two meshed with the interference fit with excellent match.
4. The mortar grouting pump to adapt to the water-cement ratio greater than 0.3 above the flowability of thick slurry.
5. The key parts of the grouting pump using imported materials to effectively extend the service life of wear parts.
| Main parameter | Unit | Parameter | |
| Pulp output | m³/h | 6 | |
| Power of motor | Kw | 7.5 | |
| Sand and gravel (or aggregate) particle size | Mm | ＜5 | |
| Water-cement ratio | W/C | ≥0.3 | |
| Grouting pump pressure | MPa | ＜6MPa（adjustable） | |
| Grouting distance | Horizontal | m | 500（cement paste） |
| Perpendicular | m | 100（cement paste）/80（cement mortar） | |
| Hopper volume | L | 200 | |
| Grouting pump weight | Kg | 340 | |
| Grouting pump size | Mm | 2300*720*940 | |
Please send us your request and we will reply to you within 24 hours.
Reach out to us anytime and we'll happily answer your questions.
Tel
+86-371-86663455
This LC-200 mortar grouting pump has the characteristics of compact structure, stable performance, adjustable pressure and displacement, small volume and light weight, easy to disassemble and carry, etc., and it can replace the clear water pump, sewage pump and mud pump at the construction site
Double-liquid grouting pumps are mainly used for tunnel excavation and maintenance, roads, bridges, dams, mine construction and foundation treatment projects of high-rise buildings and various grouting construction projects.
