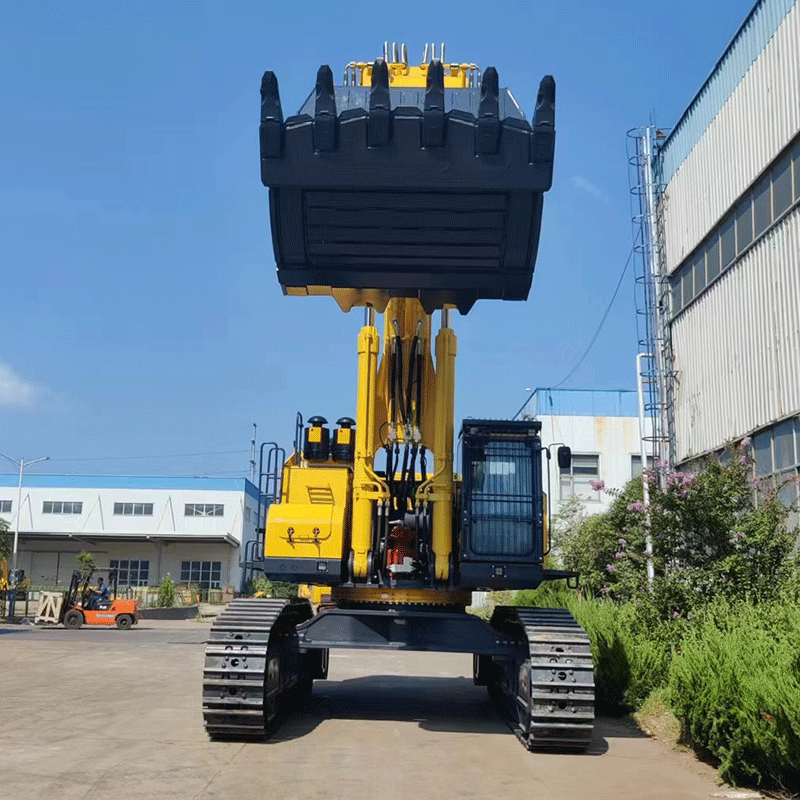

LC1100.1 108Ton Hydraulic Mining Shovels Face Shovel Excavator
The front shovel has a large excavation force and can excavate soil above the parking surface. It is suitable for excavating dry foundation pits with a height greater than 2m, but up and down ramps must be set up. The bucket of the front shovel is larger than that of the backhoe of the same capacity. It can excavate Class I to III soils with a moisture content of no more than 27%, and can cooperate with dump trucks to complete the entire excavation and transportation operation. It can also excavate large dry foundation pits and mounds.
We're here to help: Easy ways to get the answers you need!

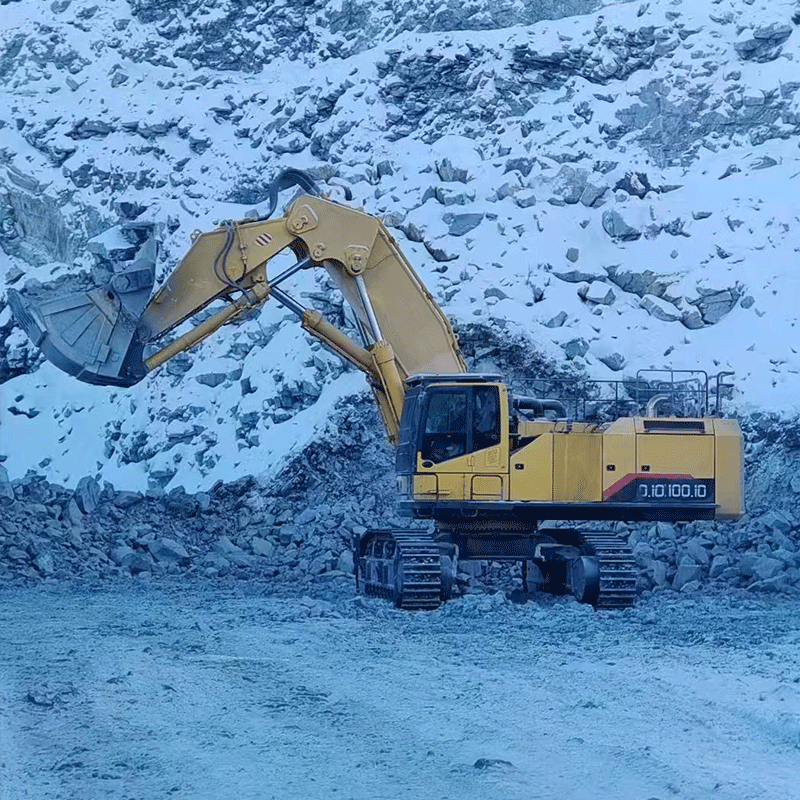

A front shovel excavator is a single-bucket excavator that moves the bucket and dipper arm toward the front and top of the machine to perform excavation. It is mainly used for open-pit mining and stripping operations, and is suitable for excavating rock piles above the parking surface. It can be loaded flat, dumped, and loaded horizontally upwards.
|
Model
|
LC1100.1
|
|
Total Weight
|
108 ton
|
|
Bucket capacity
|
6m3
|
|
Engine model
|
Scania DC16
|
|
Rated power(Kw/r/min)
|
574/2000
|
|
fuel tank volume(L)
|
1300
|
|
walking speed(km/h)
|
3.53/2.39
|
|
Swing speed(r/min)
|
6.5
|
|
Climbing ability
|
35
|
|
Bucket digging force(KN)
|
712
|
|
Arm digging force(KN)
|
442
|
|
Ground pressure(KPa)
|
138
|
|
Traction(KN)
|
714
|
|
Max. flow rate(L/min)
|
550*2
|
|
Work pressure(MPa)
|
34.3/37
|
|
Hydraulic tank volume(L)
|
1090
|
The front shovel has a large excavation force and can excavate soil above the parking surface. It is suitable for excavating dry foundation pits with a height greater than 2m, but up and down ramps must be set up. The bucket of the front shovel is larger than that of the backhoe of the same capacity. It can excavate Class I to III soils with a moisture content of no more than 27%, and can cooperate with dump trucks to complete the entire excavation and transportation operation. It can also excavate large dry foundation pits and mounds.
Good stability: The front shovel excavator generally has a larger chassis and a heavier body to ensure stability during excavation operations. Its walking device usually adopts a crawler type. The crawler has a large contact area with the ground and a small ground pressure. It can maintain good stability under different terrain conditions and adapt to various complex construction environments.
Wide adaptability: By replacing different working devices and accessories, the face shovel excavator can realize a variety of functions. For example, it can be equipped with a breaker for rock crushing operations, and equipped with a grab for material grabbing operations, etc., which can adapt to different engineering construction needs.
