LC255 25Ton Lichmach Crawler Excavator
Our hydraulic crawler excavator is equipped with a reliable original Cummins engine. It has a reliable hydraulic system with imported pumps, motor and valves.
We're here to help: Easy ways to get the answers you need!

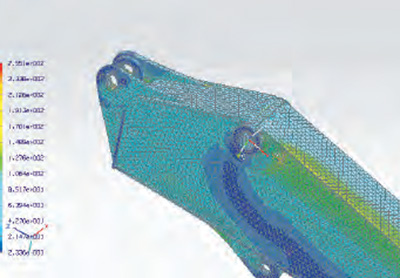

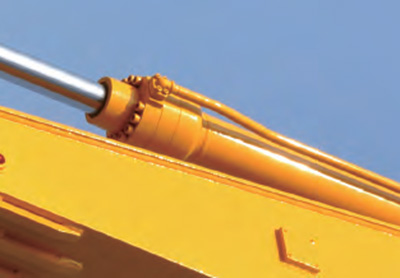

The finite element analysis (FEA) of excavator boom and stick is performed for prolonged lifespan.

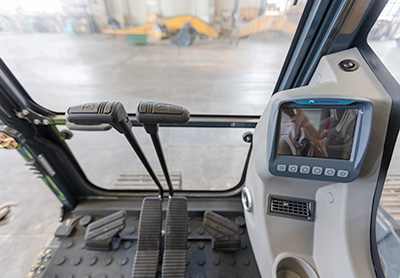

The sensitive joystick allows for precise control and greater responsiveness.
The exclusive cab structure provides more foot space.

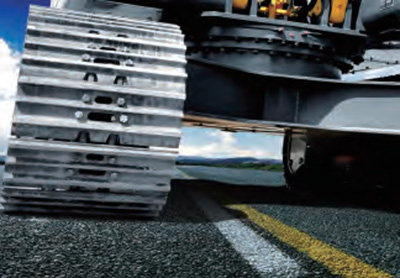

The strengthened box type structure is fully welded using low stress high tensile steel plate.

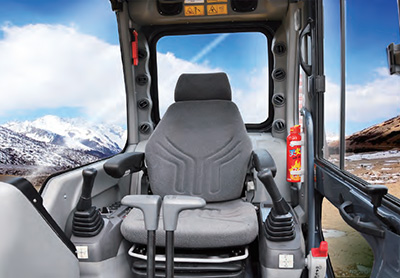

The new safe and reliable cab is utilized in the crawler excavator, it features an injection-molded interior and an automatic air conditioner for operator's comfort.

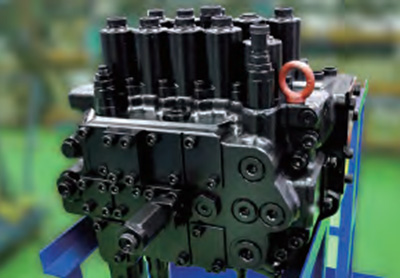

Parker valves with closed center design are utilized in the crawler excavator for easy maintenance.
With the addition of a first-stage oil-water separator, the precision reaches 10 microns.

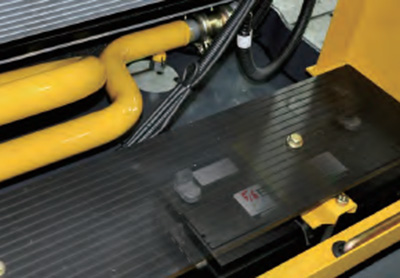

The battery protection plate is installed to keep rainwater out and prolong the service life of the battery.

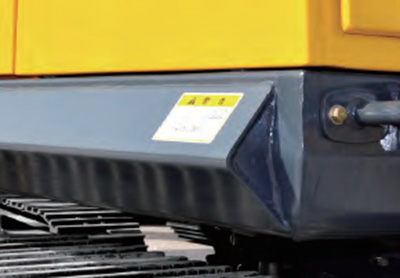

The excavator is strengthened by the addition of anti-collision beams, making the operation safer.
Specifications of ZG3255LC-9C Hydraulic Excavator:
| Model | LC255 |
| Length×Width×Height(mm) | 9840×3180×3180 |
| Operating weight (Kg) | 25000 |
| Rated bucket capacity(m3) | 1.2 |
| Max.digging depth(mm) | 6995 |
| Max.digging radius(mm) | 10258 |
| Max.digging height(mm) | 9612 |
| Max.dumping height(mm) | 6690 |
| Bucket digging force(KN) | 162 |
| Stick digging force(KN) | 123 |
| Gradient capacity(%) | 70 |
| Diesel engine | Cummins 6BTAA5.9-C178 |
| Rated output(KW) | 133 |
