LC60-9A Hydraulic Crawler Excavator

Introduction

The LC60-9A has ample refilling capacities, including a 105-liter fuel tank, a 10.4-liter cooling system, a 10-liter engine oil capacity, and a hydraulic oil tank/system capacity of 74/110 liters. These capacities ensure extended operation and reduced downtime due to refilling.

Engine Prowess:

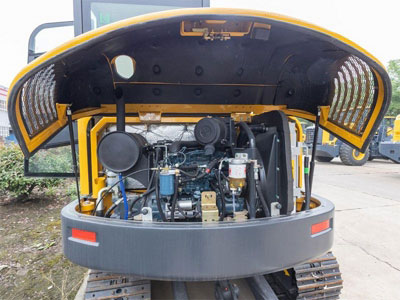

Driven by the formidable Kubota V2607 engine, this excavator boasts a commanding power output of 36 kW at 2000 rpm. Its water-cooled, four-cylinder configuration and turbocharging ensure not only remarkable performance but also optimal fuel efficiency.

Versatile Travel System:

Powered by variable axial piston motors, the travel system propels the excavator at two speeds: 4.6/2.7 km/h and 4/2.3 km/h. A drawbar pulling force of 50 kN and an impressive grade ability of 70%/35° guarantee it can conquer diverse terrains effortlessly.

Hydraulic Expertise:

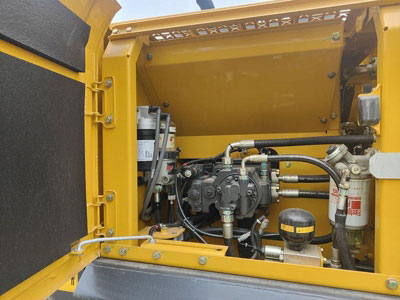

The hydraulic system, featuring a variable piston pump, provides precise control over the excavator's functions. With a maximum discharge flow of 152L/min, it guarantees smooth and efficient operation.

Digging Force and Capacity:

With a bucket digging force of 48kN and an arm digging force of 29kN (ISO6015), the excavator effortlessly penetrates even the toughest materials. Its 0.22m3 bucket capacity, coupled with an 810mm bucket width, ensures efficient material handling.

Features

Kubota/WEICHAI engine conforms to China-III emission regulation and features strong power, low fuel consumption, and prominent performance, and the aluminum paralleling radiator features good heat dissipation performance.

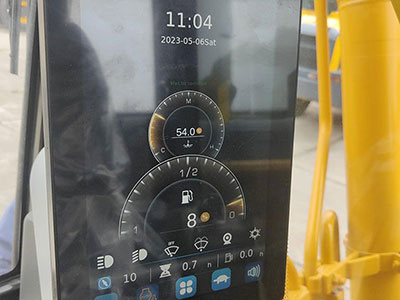

The crawler excavator adopts an electro-mechanically integrated intelligent electronic control system with proprietary intellectual property rights. The multi-functional LCD display can realize the data acquisition and transmission, orientation, control, protection, and remote firmware upgrade and achieve high intelligent control.
All-new cab comes with broader vision field and more reasonable space layout. The air-cushioned seats and the ergonomic control system realize simpler and more comfortable operations and minimize the driver’s fatigue.

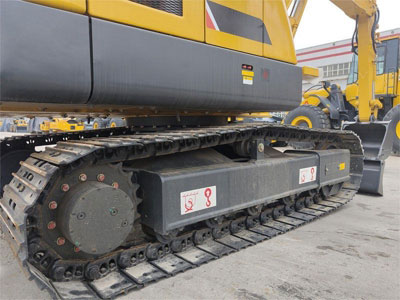

Equipped with highly reliable traveling mechanism and working device, the application of strength calculation, finite element analysis, and new structures and new materials for the structural parts significantly improves the reliability.
It features convenient repairs and maintenances. The application of full-opening front and rear hoods and side gates and the central lubrication system for slewing system realizes convenient and efficient maintenances and reduces the maintenance costs.

Operator-Centric Design

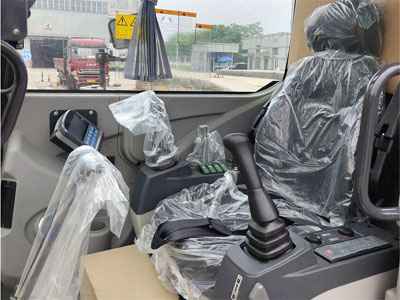

Comfortable Cab:

The all-weather, sound-suppressed cab is equipped with an insulated floor mat, providing operators with a comfortable and serene workspace. Featuring a range of amenities, including adjustable seating, LED displays, and an automatic monitoring and warning system, it maximizes operator convenience.

Precise Control:

The dual-hand levers and foot pedals for travel, along with separate hand levers for excavating and swinging functions, offer precise control. The inclusion of an electric throttle simplifies operation, enhancing efficiency.

Impressive Reach:

Work Range:

With a maximum digging height of 5785mm, a digging depth of 3850mm, and a digging radius at ground level of 6060mm, the excavator showcases its versatility in various excavation tasks. Its impressive 3.0m boom and 1.6m arm allow it to tackle a wide range of job sites.

Compact Dimensions:

Measuring 5855mm in overall length, 1880mm in width, and 2610mm in overall height (to top of cab), this excavator maintains a compact footprint without compromising stability and performance.

Operating Weight:

Weighing 5.96 tons, the LC60-9A is a powerhouse equipped to tackle challenging tasks while maintaining stability and control.

Engineered with Integrity:

Please note that any optional or special parts can only be installed with the permission of our company, ensuring the excavator retains its integrity and adheres to our high-quality standards.

The LC60-9A Hydraulic Crawler Excavator, with its robust construction, advanced features, and operator-focused design, is your ultimate partner for achieving superior excavation results.

Refilling Capacities & Lubrication:

Please note that additional or special parts can only be installed on the machine with the permission of the company. The LC60-9A Hydraulic Crawler Excavator offers a combination of power, precision, and operator comfort, making it a valuable asset for various construction and excavation applications.

Technical parameters

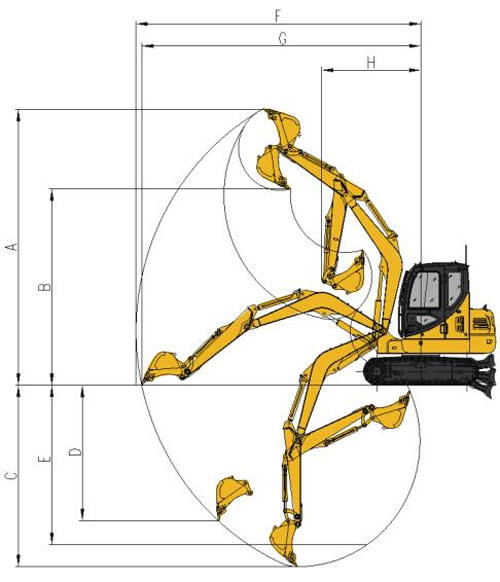

Scope of work _(mm)
A	Max. digging height	5785
B	Max. dumping height	4075
C	Max. digging depth	3850
D	Max. vertical digging depth	3000
E	Max. Depth cut for 2500mm Level Bottom	3445
F	Max. digging distance	6200
G	Max. digging radius at ground level	6060
H	Min. swing radius of work equipment	2395

LC60-9A Hydraulic Crawler Excavator

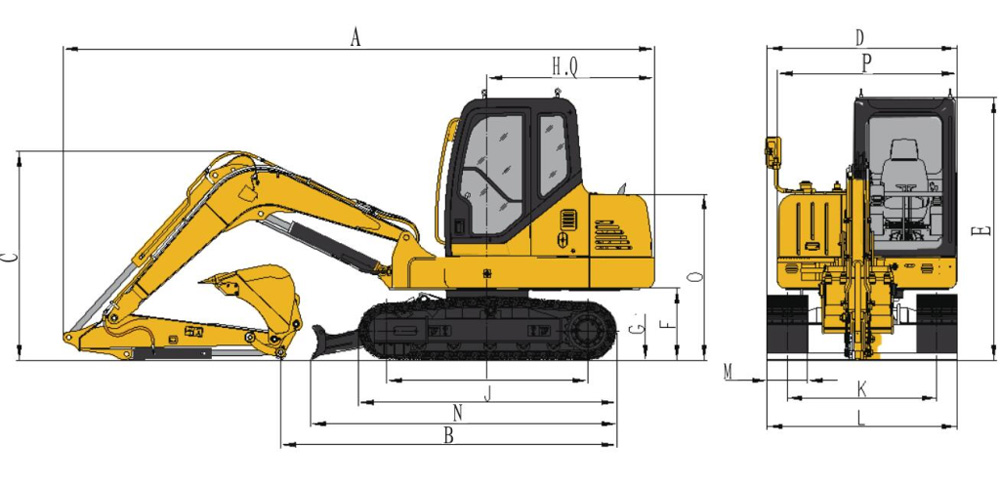

Dimensions _(mm)
A	Overall length	5855	I	Tread	1990
B	Ground contact length (Transportation)	3330	J	Track length	2560
C	Overall height(to top of boom)	2060	K	Track gauge	1480
D	Overall width	1880	L	Track width	1880
E	Overall height(to top of cab)	2610	M	Shoe width	400
F	Counter weight ground clearance	710	O	Bonnet height	1635
G	Ground clearance	360	P	Revolving frame width	1780
H	Tail swing radius	1655	Q	Distance from swivel center to tail	1655
