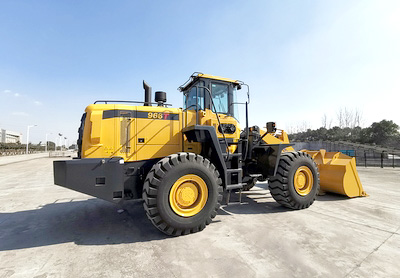

LICHMACH 668G Wheel Loader

Introduction

Increased Bucket Size, 12% Improved Productivity:

The enhanced bucket size of the LICHMACH 668G boosts productivity by a remarkable 12%. You can handle larger loads with ease, making your operations more efficient and time-saving.

Efficient 18MPa Hydraulic System:

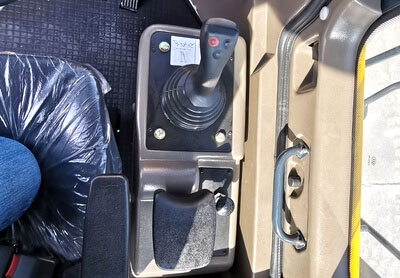

With an 18MPa working hydraulic system pressure, the LICHMACH 668G ensures high efficiency while conserving energy. The single-lever control simplifies operation, reducing operator fatigue and increasing productivity.

Extended Wheelbase for Enhanced Stability:

The longer wheelbase and increased counterweight provide greater load-carrying capacity. With the fuel tank relocated to the rear, the machine's stability is significantly improved, and refueling becomes more convenient.

Improved Transmission and Axle Reliability:

We've taken reliability seriously. The LICHMACH 668G features enhancements in both the transmission and front and rear axles to ensure smooth operation and ease of maintenance.

New Cooling System Design:

Our innovative cooling system design allows you to opt for a cooling system that meets high-temperature requirements, up to 50℃. This ensures that the loader can perform optimally even in demanding conditions.

Optimized Engine-Torque Converter Matching:

The engine's optimized torque converter matching provides a substantial increase in traction while maintaining eco-friendliness and fuel efficiency. You get the power you need without compromising on environmental considerations.

Hydraulic Coaxial Flow Amplification Steering:

The full hydraulic coaxial flow amplification steering system elevates steering pressure, making turning effortless and quick. This enhances maneuverability, especially in tight spaces.

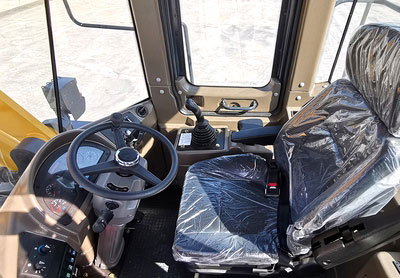

Enhanced Operator Comfort:

We understand the importance of operator comfort. That's why we've added shock-absorbing devices to the engine installation, further improving cabin sealing, reducing vibrations, and minimizing noise levels.

Top-Notch Components:

Only the best components are used in the LICHMACH 668G. You'll find internationally recognized brands for working pumps, steering pumps, and high-pressure pipe fittings conforming to SAE/DIN standards. This optimized design ensures top-notch performance and durability.

Convenient Brake System:

The brake system has been enhanced for your convenience. The brake booster and the brake airbox have been relocated to the machine's left-center maintenance area, making maintenance a breeze.

Meets National Standards:

The LICHMACH 668G is designed to meet mandatory national noise and safety standards, ensuring compliance with the highest safety regulations.

Luxury Features Included:

As a standard offering, the LICHMACH 668G comes equipped with luxurious features such as air conditioning, heating, alarms, a CD player, and more. Your comfort and convenience are our priorities.

Features

The frame hinges are perfectly matched with tapered roller bearing thanks to its innovative structure design, resulting in an increased contact area which leads to the high reliability of the hinge even under severe working conditions.
The wheel loader adopts ZF4WG200 gearbox and torque converter transmission system. The gearbox with electric-hydraulic control executes fixed axis power shift transmission and can achieve forced deceleration, providing easy operation and high work efficiency.
The load sensing hydrostatic steering system with small-displacement steering gear and low pressure control makes the steering easy and precise while greatly lowering labor intensity. The adjustable steering wheel enables the driving easier and more comfortable.
The hydraulic system features an innovative design of heat dissipation that is approved through simulation validation and verification testing, providing reasonable heat dissipation under any working conditions so that the radiator efficiency and hydraulic system reliability can be improved.
The T-series large-opening exterior cover allows the free flow of air through the front air inlet and rear air outlet of the radiator. In addition, a newly designed cab has a superior seal which ensures that the noise level is far lower than the national standard.
The relays and fuses are centrally located, the grease nipple is located at the side of the frame, and the pressure measuring port is arranged in the front of the auxiliary box. All of these arrangements make it easy and convenient for maintenance.

Technical parameters

Impressive Capacity and Weight:

- Bucket Capacity: 3.3-5.5m³

- Rated Load Capacity: 6000kg

- Overall Operating Weight: 19600kg

Exceptional Power and Performance:

- Maximum Traction Force: 187kN

- Maximum Breakout Force: 206kN

- Maximum Grade Ability: 30°

Agile Maneuverability

- Minimum Turning Radius (Bucket Outside): 7108mm

- Minimum Turning Radius (Tire Outside): 6298mm

- Bucket Lifting, Tilting, and Lowering Time: 10.18s

Versatile Load Handling

- Unloading Height: 3104mm

- Unloading Distance: 1229mm

- Wheelbase: 3350mm

Overall Dimensions

- Length x Width x Height: 8440x3075x3410mm

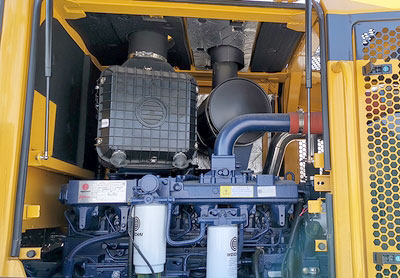

Powerful Engine

- Model: Weichai WP10G240E343

- Type: National III, Inline 6-cylinder, Four-stroke Engine

- Rated Power: 178KW

- Maximum Torque: 950Nm

Efficient Transmission

- Torque Converter Model: YJ375

- Type: Single-stage Centrifugal Type

- Transmission Type: Fixed-shaft Engagement Power Shift

- Gears: 4 Forward and 4 Reverse

Swift Travel

- Maximum Travel Speed: 39.4km/hr

Optimal Control

- Front and Rear Drive Axles: Four-Wheel Drive, Fixed Front Axle, Swinging Rear Axle (+/-12°)

The LICHMACH 668G Wheel Loader combines power, reliability, and comfort to bring you a machine that excels in every aspect. With its enhanced features and exceptional performance, it's your ideal partner for demanding construction and heavy-duty tasks. Elevate your productivity and efficiency with the LICHMACH 668G. Contact Us Now.
