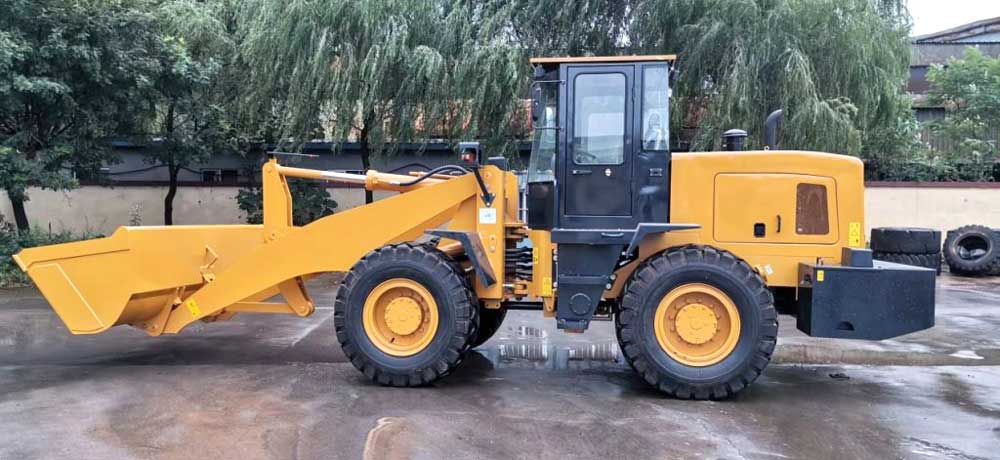

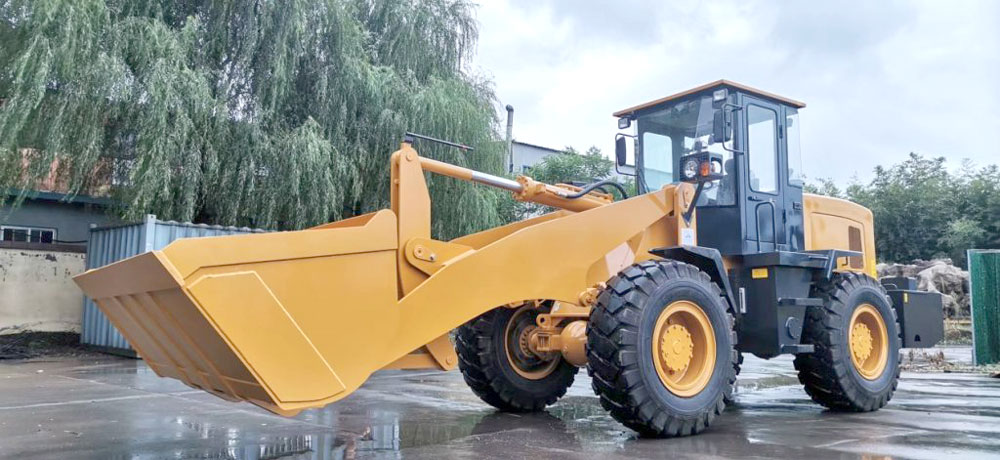

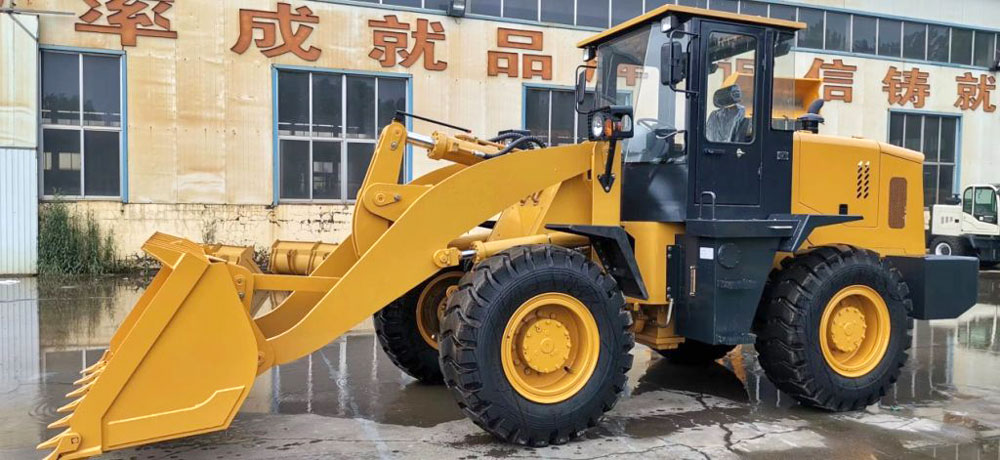

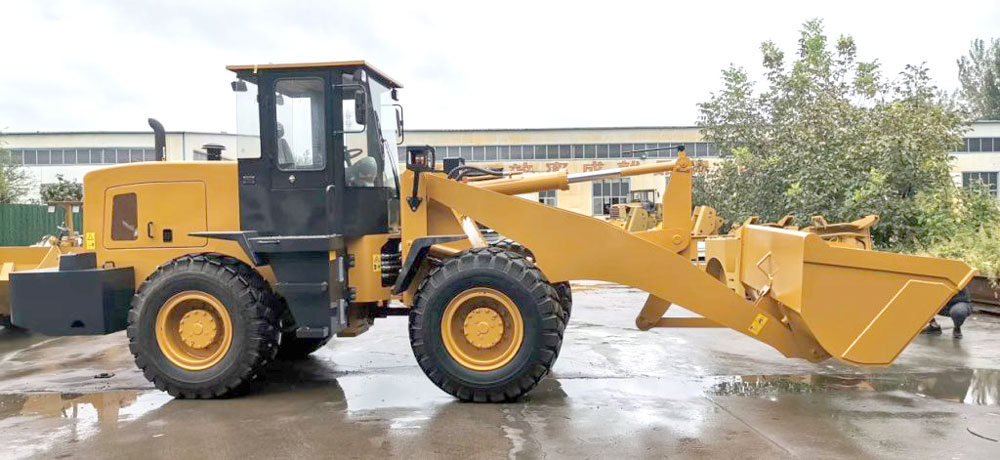

LICHMACH LC 636G Loader

Introduction

Unleash the Power:

At the heart of the LC 636G Loader lies a robust engine, the Doyen WP6G125E333, renowned for its reliability and performance. With a rated power of 92 kW and a maximum torque of 760 N.m, this engine ensures that you have all the power you need to get the job done, no matter how demanding it may be. Plus, it complies with national emission standards making it an environmentally responsible choice.

Exceptional Load Capacity:

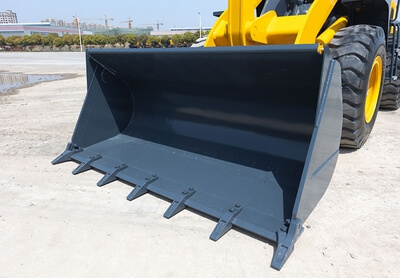

The LC 636G Loader boasts a rated loading capacity of 3000 kg, making it the perfect companion for heavy lifting tasks. Whether you're loading materials onto trucks or working on construction sites, this loader can handle it all. Its bucket capacity ranges from 1.53 to 2.5 cubic meters, allowing you to optimize your load to suit the task at hand.

Precision Control and Maneuverability:

One of the standout features of the LC 636G Loader is its exceptional control and maneuverability. With a minimum turning radius of 5097 mm, you can navigate tight spaces with ease, reducing downtime and increasing productivity. The 4 forward and 2 reverse gears, coupled with a maximum speed of 39 km/h, give you the control you need to handle various terrains effortlessly.

Built to Last:

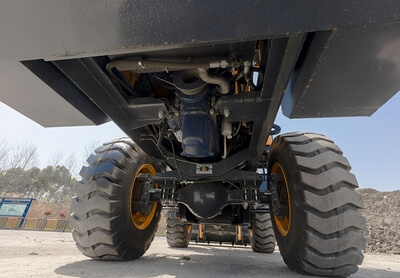

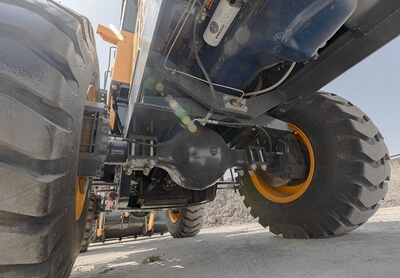

Durability is at the core of the LC 636G Loader's design. Its main reducing spiral features a one-stage bevel gear reduction, ensuring long-lasting performance even under heavy loads. The planetary reduction-grade 1 decelerating mode in the wheel axles further enhances its robustness. With a ground clearance of 400 mm, this loader can handle rough terrain without breaking a sweat.

Efficient Hydraulic System:

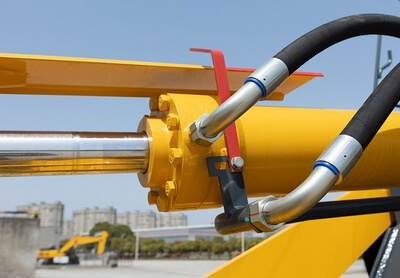

The LC 636G Loader's hydraulic system operates at a working pressure of 16.5 MPa, guaranteeing smooth and efficient operation. It boasts quick boom lifting times and a total cycle time of 8.2 seconds, ensuring that you can complete tasks swiftly and without unnecessary delays.

Safety at the Forefront:

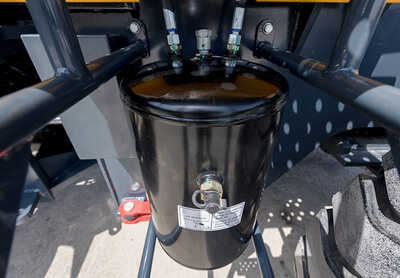

Safety is paramount, and the LC 636G Loader is equipped with top-notch safety features. Its service brake employs air-assist disc brakes on all four wheels for reliable stopping power. The parking brake, a manual disk brake, provides additional security when needed.

Tires for Any Terrain:

The LC 636G Loader rides on 17.5-25 tires, designed for durability and performance. With front and rear tire pressures of 0.4 Mpa and 0.35 Mpa, respectively, you can count on these tires to provide traction and stability on various surfaces.

Sleek Design and Comfortable Cabin:

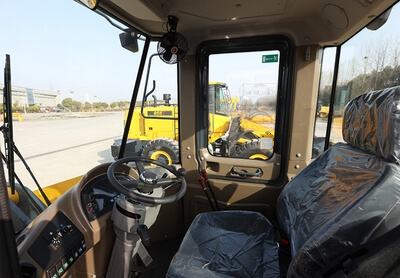

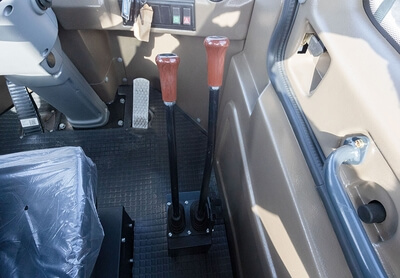

Not only is the LC 636G Loader a powerhouse of performance, but it also boasts a sleek and modern design. The operator's cabin is spacious and comfortable, ensuring that long working hours are a breeze. With ergonomic controls and excellent visibility, you'll stay in control and comfortable throughout your workday.

The LC 636G Loader is the epitome of power, performance, and precision in the world of heavy machinery. With its robust engine, exceptional load capacity, maneuverability, and safety features, it's your ideal partner for any challenging task. Don't miss the opportunity to add this top-tier loader to your fleet and experience a new level of productivity and efficiency. Invest in the LC 636G Loader today and take your construction and loading projects to new heights!
