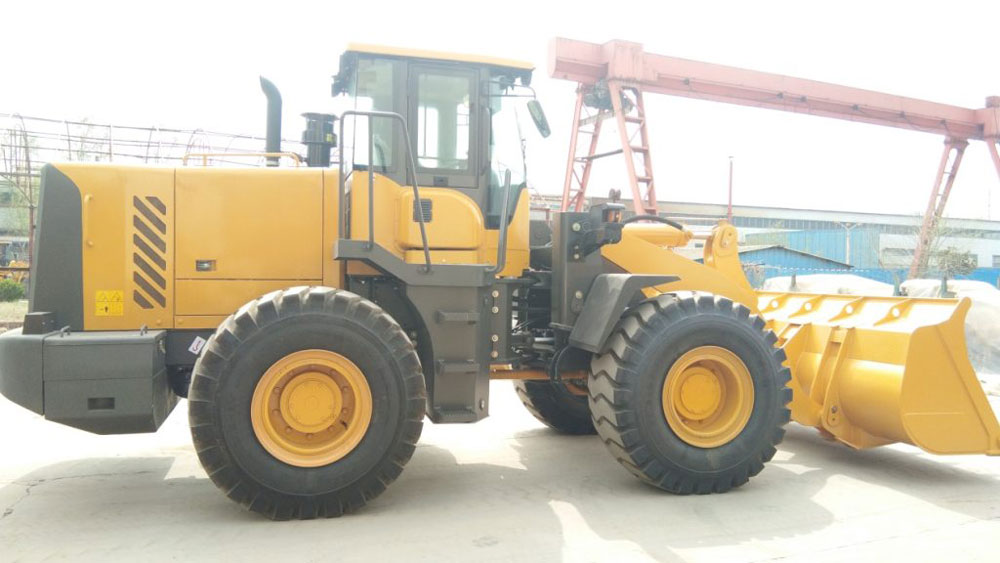

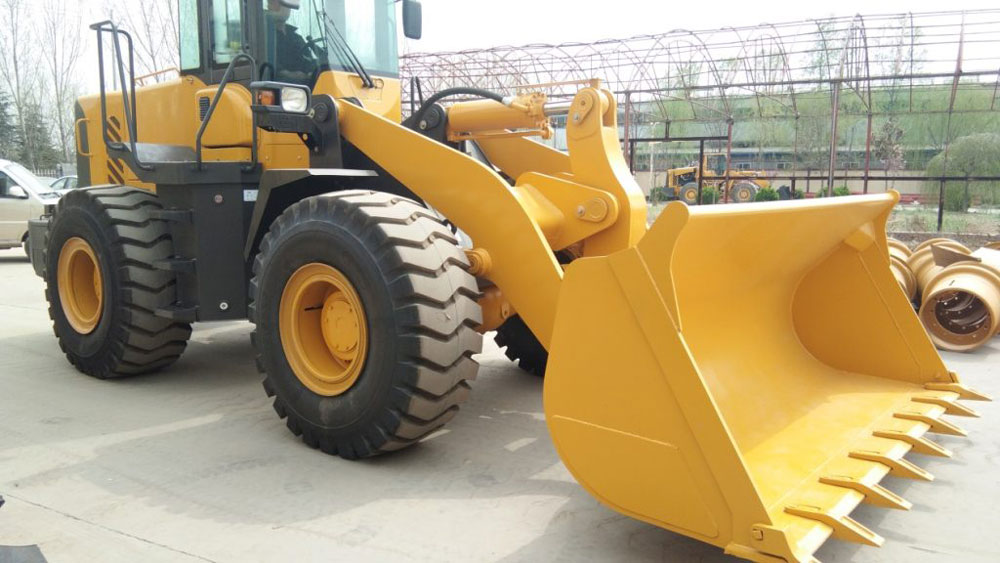

LICHMACH LC 655G Wheel Loader

Introduction

Unparalleled Design and Comfort

The LC 655G Wheel Loader sets new standards in user-centric design. Its spacious and ergonomically designed cabin offers a wide field of vision, ensuring that operators can carry out their tasks with ease. The easy-to-read gauges and intuitively placed controls provide an unparalleled level of comfort, making long hours of operation a breeze.

Safety Beyond Compare

Safety is paramount, and the LC 655G is engineered to deliver just that. Equipped with an air-over-hydraulic disc brake system on all four wheels, this loader guarantees smooth and secure braking, even in demanding conditions. The parking brake further enhances safety, instilling confidence in every maneuver.

Powerful and Reliable Engine

At the heart of the LC 655G lies the robust Weichai Styer turbo-charged diesel engine. Its formidable power and torque capabilities are matched by exceptional fuel efficiency and minimal noise output. With this engine, you can trust in consistent and reliable performance, even in the harshest of environments. Plus, the double-stage air filter ensures that your loader remains in prime condition, making it ideal for dusty work sites.

Enhanced Efficiency

Efficiency is the name of the game, and the LC 655G doesn't disappoint. Its twin pump-merging flow system, coupled with the coaxial flow amplification system, amplifies work efficiency and economy. When steering isn't required, the surplus engine power is channeled towards breakout and lift forces, resulting in increased productivity and cost-effectiveness.

Convenience at Its Best

Maintenance shouldn't be a hassle, and with the LC 655G, it certainly isn't. The folding steel structure engine covers not only enhance the loader's aesthetics but also make maintenance a breeze. Your loader will always look great and be easy to service.

Technical Mastery

Let's delve into the technical prowess of the LC 655G Wheel Loader:

- Rated Load: With a formidable 5000kg rated load capacity, this loader can handle substantial materials with ease.

- Overall Weight: Weighing in at 16000kg, the LC 655G balances power and mobility perfectly.

- Rated Bucket Capacity: The 3.0 cubic meter rated bucket capacity ensures you can complete more work in less time.

-Maximum Tractive Force: A staggering 150KN maximum tractive force guarantees outstanding pulling power.

- Maximum Breakout Force: With a breakout force exceeding 160KN, this loader can handle even the toughest materials.

- Maximum Grade Ability: Tackle steep inclines with confidence, thanks to a maximum grade ability of 30℃.

- Maximum Dump Height and Reach: Reach new heights with a maximum dump height of 3200mm and a dump reach of 1264mm.

- Overall Dimensions: The loader's dimensions (L×W×H) are 7753×3024×3423mm, ensuring maneuverability on any job site.

- Minimum Turning Radius: With a minimum turning radius of 6201mm, you can navigate tight spaces effortlessly.

Engineered for Excellence

Under the hood, the LC 655G boasts the Weichai Steyr WP10G220E343 engine. It's a state-of-the-art, direct injection, 6-cylinder, four-stroke engine with a bore/stroke ratio of 126x130mm. This powerhouse delivers 162kw of rated power at 2400r/min and a maximum torque of 920N.m. Not to forget, its minimal fuel-consumption ratio of ≤215g/kw.h ensures efficiency.

Efficient Transmission

The LC 655G features a single-stage, four-element, twin-turbo hydraulic torque converter. Its planetary power-shift gearbox offers two forward and one reverse gear, allowing for a maximum speed of 38km/h. The drive axles incorporate a main reducing spiral bevel gear grade 1 reduction and a wheelbase of 2920mm.

Hydraulic Precision

The hydraulic system of the LC 655G operates at a working pressure of 18MPa. The boom lifting time is a swift 5.95±0.2 seconds, with a total cycle time of 10.95±0.5 seconds. With a generous fuel tank capacity of 265 liters, this loader ensures extended operation without frequent refueling. Plus, the automatic leveling function for the bucket makes material handling smoother and more efficient.

Reliable Brake System

Safety is non-negotiable, and the LC 655G's brake system ensures your peace of mind. It features air-over-hydraulic disc brakes on all four wheels for the service brake and a manual parking brake.

Built to Last

The LC 655G rides on 23.5-25 tires, with front and rear tire pressures of 0.4Mpa and 0.35Mpa, respectively. Its robust build, impressive specifications, and advanced features ensure it can withstand the toughest working conditions and deliver exceptional performance day in and day out.

LICHMACH LC 655G Wheel Loader is the epitome of power, performance, and precision. It's your ticket to unmatched efficiency, safety, and comfort in the world of heavy-duty construction and material handling. Don't compromise on quality; choose the LC 655G and elevate your operations to new heights. Order yours today and experience the difference firsthand!
