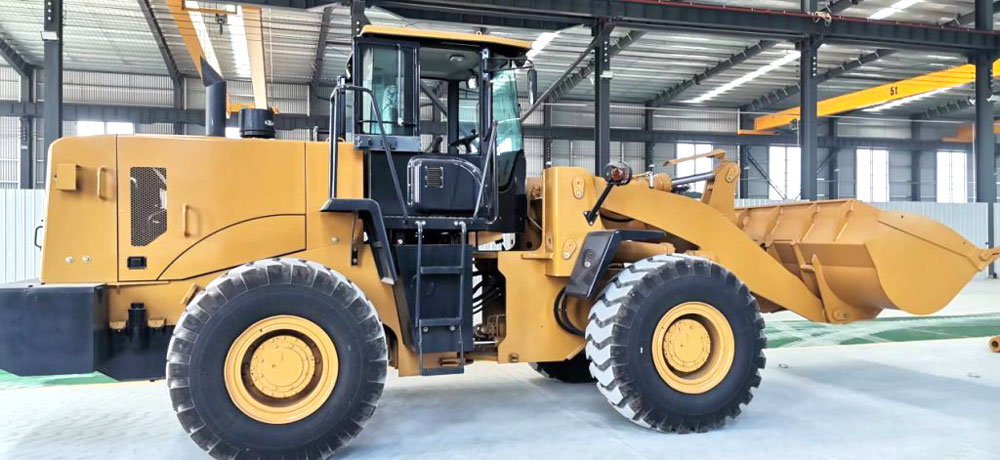

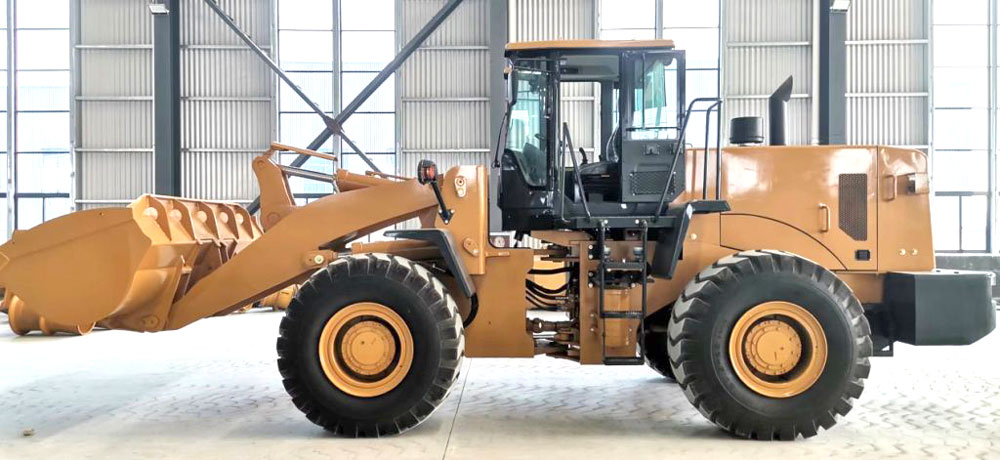

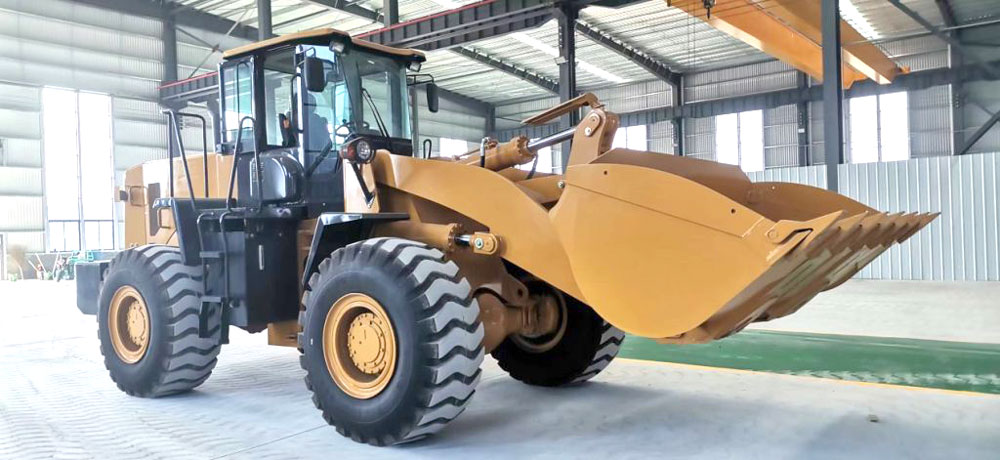

LICHMACH Loader LC 656G

Introduction

Unmatched Performance:

The LC 656G loader boasts impressive performance parameters that ensure you'll never fall short of power and efficiency on the job. With a rated load capacity of 5000kg, this workhorse can handle substantial loads with ease. Its robust Weichai Steyr WP10G220E343 engine, a National III compliant, inline 6-cylinder, four-stroke powerhouse, delivers 162kW of raw energy at 2400 rpm. The LC 656G also offers a maximum torque of 920N.m while maintaining a minimal fuel-consumption ratio of ≤215g/kw.h, ensuring both power and efficiency in one package.

Precision and Control:

What sets the LC 656G apart is its exceptional control and handling. Thanks to its central articulated frame, this loader features a small turning radius, providing exceptional maneuverability, stability, and the ability to operate seamlessly in confined spaces. The full hydraulic steering and power shift transmission further enhance control, offering smooth and reliable operation.

Safety First:

Your safety is our priority. The LC 656G loader is equipped with an air over hydraulic disc brake on all four wheels, ensuring a stable and reliable braking system for safe operation. Its maximum tractive force of 172KN and maximum breakout force of ≥162KN make it a dependable partner on any construction site. Plus, the LC 656G offers a comfortable and spacious cabin with easy-to-read gauges and ergonomically designed controls, ensuring that operators can focus on the task at hand without distractions.

Efficiency Redefined:

The LC 656G loader features a twin pump-merging flow system that optimizes working efficiency and economy. Whether you're loading, lifting, or transporting materials, you can trust this loader to get the job done quickly and economically. Its maximum grade ability of 30℃ and maximum dump height of 3100mm means you can tackle a wide range of tasks with ease.

Built to Last:

Durability and ease of maintenance are crucial for any heavy equipment. The LC 656G loader is designed with this in mind. The steel construction of the big loading engine side covers not only adds to its sleek appearance but also ensures easy maintenance when needed. This loader is built to withstand the test of time and the rigors of demanding construction environments.

Advanced Features:

The LC 656G loader doesn't just stop at performance and safety; it's packed with advanced features that make it a true industry leader. Its pilot hydraulic implement controls provide flexibility and comfort during operation. The inclusion of a double-stage air filter ensures that the loader can handle dusty work environments without a hitch.

Specifications at a Glance:

- Rated Load Capacity: 5000kg

- Overall Weight: 17100kg

- Rated Bucket Capacity: 3m³

- Maximum Tractive Force: 172KN

- Maximum Breakout Force: ≥162KN

- Maximum Grade Ability: 30℃

- Maximum Dump Height: 3100mm

- Maximum Dump Reach: 1260mm

- Overall Dimension (L×W×H): 8247×3060×3410mm

- Minimum Turning Radius: 6000mm

Take Control of Your Construction Projects:

In the world of heavy machinery, the LICHMACH Loader LC 656G stands out as a symbol of power, precision, and reliability. Don't settle for less when you can have the best. Elevate your construction and earthmoving projects to new heights with the LC 656G loader. Order yours now and witness the difference on your job site. Power, precision, and productivity – that's what the LC 656G loader is all about.

Features

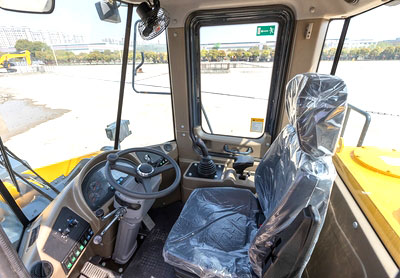

The comfortable and safe cab provides perfect all-round visibility.

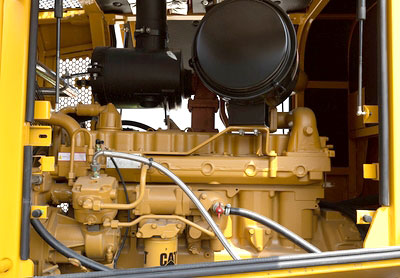

The wheel loader has a strong power system driven by SDEC engine, which allows the construction machine to smoothly run under severe conditions. With world-class quality, the fuel-efficient wheel loader features high working efficiency and enhanced digging force. Each part of the wheel loader has been improved on its strength and safety factor, and the engine cooling system has sufficient coolant, all of which ensure high reliable work performance and long service life of the diesel engine.
The single-pedal dual-circuit service brake system and emergency braking system that comply with the requirements of international standards are used to ensure safe and effective braking. The foot brake adopts gas-assisted hydraulic caliper disc brake to ensure high reliability, and the hand brake uses manual air braking system to achieve emergency stopping in an effective manner.

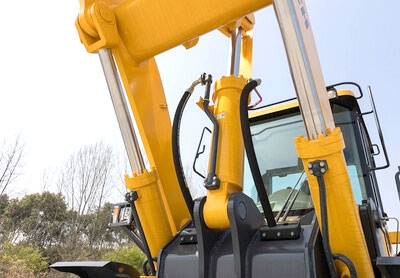

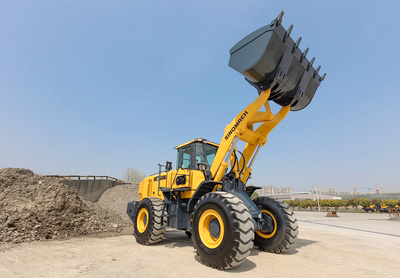

The new optimized single arm allows high pivot point possible, and such a design provides large bucket loading capacity and high work efficiency. The front frame of the wheel loader is composed of strong integral structure made from high-quality and durable materials. The 85mm-thick structure can withstand all kinds of severe working conditions. The unique hinged structure means more convenience in wheel loader maintenance. Thanks to the dust-proof structure, mud, grains of sand and dust can be effectively prevented from entering the key part of wheel loader. Therefore, the wheel loader has a long service life with lower maintenance costs.
The advanced hydraulic system not only boosts the digging capacity, but also keeps the oil temperature in hydraulic system at an appropriate level. All of these features mean higher efficiency in your construction project.

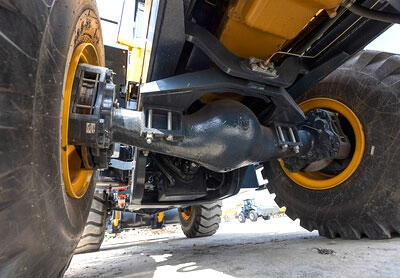

The wheel loader features a reinforced drive axle, which has been tested many times under extreme working conditions, with the maximum ramp climbing angle of 30 degrees. The speed ratio of the drive axle can be adjusted to enhance the digging capacity, and a specialized helical bevel gear is equipped to withstand overload. The drive axle and swing frame are connected with high-strength bolts, which help ensure that the front axle bolts keep work well under overload conditions, and such a design can also effectively prevent the bolts from being stretched or deformed under overload circumstances.

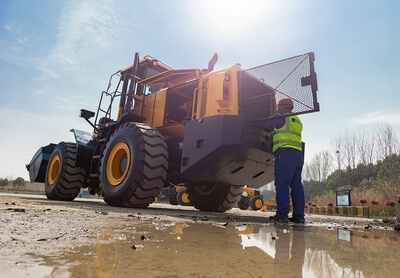

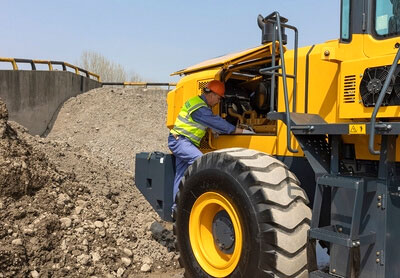

The gull-wing type engine side doors can be widely opened, making daily checks easier.
The newly developed radiator with increased heat dissipation area provides better cooling for engine, thus greatly enhancing the work efficiency and prolonging the service life of wheel loader parts. Even in high temperatures, the performance of our wheel loader will absolutely not let you down.

Technical parameters

Performance	1	rated load	5000kg
	2	overall weight	17100kg
	3	rated bucket capacity	3m³
	4	maximum tractive force	172KN
	5	maximum breakout force	≥162KN
	6	maximum grade ability	30℃
	7	maximum dump height	3100mm
	8	maximum dump reach	1260mm
	9	overall dimension (L×W×H)	8247×3060×3410mm
	10	minimum turning radius	6000mm
Engine	11	Model	Weichai Steyr WP10G220E343
	12	Type	National III, inline 6-cylinder, four stroke
	13	No. of cylinder-bore/stroke	6－126×130mm
	14	rated power	162kw--2400r/min
	15	maximum torque	920N.m
	16	min fuel-consume ratio	≤215g/kw.h
Transmission system	17	torque converter	Single-stage, four-element, twin-turbine torque converter
	18	gearbox mode	Planetary power transmission
	19	gear shift	2 forward shift 1reverse shift
	20	maximum speed	38km/h
Drive axles	21	main reducing spiral	bevel gear grade 1reduction
	22	decelerating mode	planetary reduction, grade 1
	23	wheel base (mm)	3300mm
	24	wheel tread	1800mm
	25	minimum ground clearance	450mm
Hydraulic system	26	system working pressure	18MPa
	27	boom lifting time	5.95±0.2s
	28	total time	10.95±0.5s
	29	fuel tank capacity	300L
	30	function of leveling automatically	Yes
Brake system	31	service brake	air over hydraulic disc brake on 4 wheels
Brake system	32	parking brake	manual parking brake
Tyre	33	type specification	23.5-25
	34	front tyre pressure	0.4Mpa
	35	rear tyre pressure	0.35Mpa
