    It is suitable for building road bed and road surface, building slope, excavating side ditch, stirring road mixture, removing snow, pushing granular material and maintenance of dirt road and gravel road.

    We're here to help: Easy ways to get the answers you need!

    Send Inquiry Online Chat

    Introduction

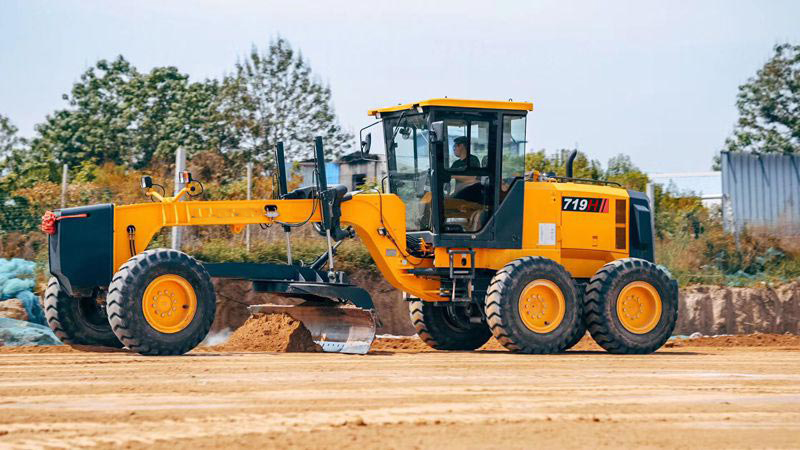

    Motor grader is one kind of earthmoving machine that uses a scraper to level the ground. The scraper is installed between the front and rear axle of the machine, and can rise and fall, tilt, turn and extend. The operation is flexible and accurate, easy to operate, and the site leveling has a high precision. It is suitable for building roadbed and road surface, building slope, excavating edge ditch, mixing road surface mixture, cleaning snow, pushing bulk material and maintenance of earth road and gravel road.

    Motor grader

    1. Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward&3 reverse shifts makes operation easy and convenient

    2. Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability

    3. Powerful traction deal axle load allocation provides excellent stability while cutting hard surface

    4. Serviceable, efficient hydraulic system enables every part to be fully used

    5. Box-typed frame and advanced T/M enable it to complete heavy-duty work

    6. A wide working range is accomplished through flexible blade suspension system and articulated frame

    Features

    • Motor grader
      High Performance, Low Emission Engine
      The use of Cummins turbocharged engine enables the motor grader to achieve excellent productivity and low fuel consumption. The greater work speeds with high horsepower are provided thanks to the precise throttle control offered by the durable mechanical inline fuel injection system.
    • Motor grader
      Reliable Transmission with Proven Performance
      The operation is simple and convenient thanks to the single-handle electro-hydraulic controlled power-shift transmission with 6 forward and 3 reverse gears. Paired with ZF-technology power-shift transmission, the Cummins engine makes the motor grader more dependable and simple to use, and suitable for all kinds of working environments.
    • Motor grader
      Robust Chassis Frame
      Box-type chassis frame and advanced transmission allows it to execute heavy-duty tasks.
    • Motor grader
      Superior Stability
      Hydraulic lock and auto lock/unlock NO-SPIN differential ensure outstanding stability and powerful traction.
    • Motor grader
      Flexible Blade Mobility
      This motor grader has an extensive working range due to its flexible blade suspension system and articulated frame.
    • Motor grader
      High Durability, Precise Control
      The drawbar is constructed with A-shaped and U-shaped frame for high durability and precise blade control.
    • Motor grader
      Smooth Operation
      A turntable of four-inner gear guide type is included in the heat-treated rotating ring structure, which allows for smooth 360° rotation. The optimal curvature of the moldboard enables all types of soil to be moved freely and efficiently.
    • Motor grader
      Ideal Axle Load Allocation
      Axle loads are optimally allocated for superior stability and high work efficiency even when cutting hard surfaces.
    • Motor grader
      Reliable Hydraulics
      Every component can be fully leveraged because of the deployment of an efficient hydraulic system. Safety is ensured by a dependable hydraulic brake system.
    • Motor grader
      Excellent Visibility
      The spacious cab is designed with a side pillar layout for an excellent visibility that gives operator confidence to maneuver in various working conditions. The moldboard and front tires are clearly visible due to the well-positioned blade linkage.
    • Motor grader
      Work Tools and Attachments Front Dozer Blades
      The front dozer, or front blade, is a piece of motor grader attachments that is mounted in the front of the vehicle for spreading gravel piles, or pushing materials in corners where is difficult to reach with the moldboard.
    • Motor grader
      Work Tools and Attachments Rear Rippers & Mid-mount Scarifiers
      Attachments such as rippers and scarifiers are tools used for digging up asphalt, rocks or other hard materials that cannot be removed by the moldboard. The V-type scarifier can accommodate up to 11 teeth, the ripper also can accommodate 3-9 shanks.
    • Motor grader
      Automatic Leveling Device
      The automatic leveling device as a 2D machine control system enables precise height and slope control, giving a high flexibility in the selection of sensors and application fields.
    • Motor grader
      Rear Axle Drive System
      By using large-size rear drive axle, the reliability of the transmission is significantly improved.
    • Motor grader
      Double Row Roller Chain
      The double row roller chain has a greater tensile strength (26 tons) over peer and national standards.

    Technical parameters

    Model 713H 717H 719H 722H 724H
    Operation weight 12000kg 14500kg 15600kg 16100kg 20000kg
    Engine model Cummins 6BT5.9-C130 Cummins 6BTA5.9-C180 Cummins 6CTA8.3-C190 SC11CB220G2B1 Cummins 6CTA8.3-C240
    Engine power 97kw 132kw 142kw 162kw 179kw
    Travelling speed 6.9/17.3km/h 6.5/14.6km/h 6.5/14.6km/h 6.9/15.5km/h 5.0/11.3km/h
    Max. grading depth 560mm 535mm 535mm 535mm 500mm
    Max. lift above ground 410mm 450mm 450mm 450mm 450mm
    Overall dimension 8290×2600×3465mm 8820×2600×3420mm 8945×2600×3420mm 9250×2600×3420mm 9250×2600×3420mm
