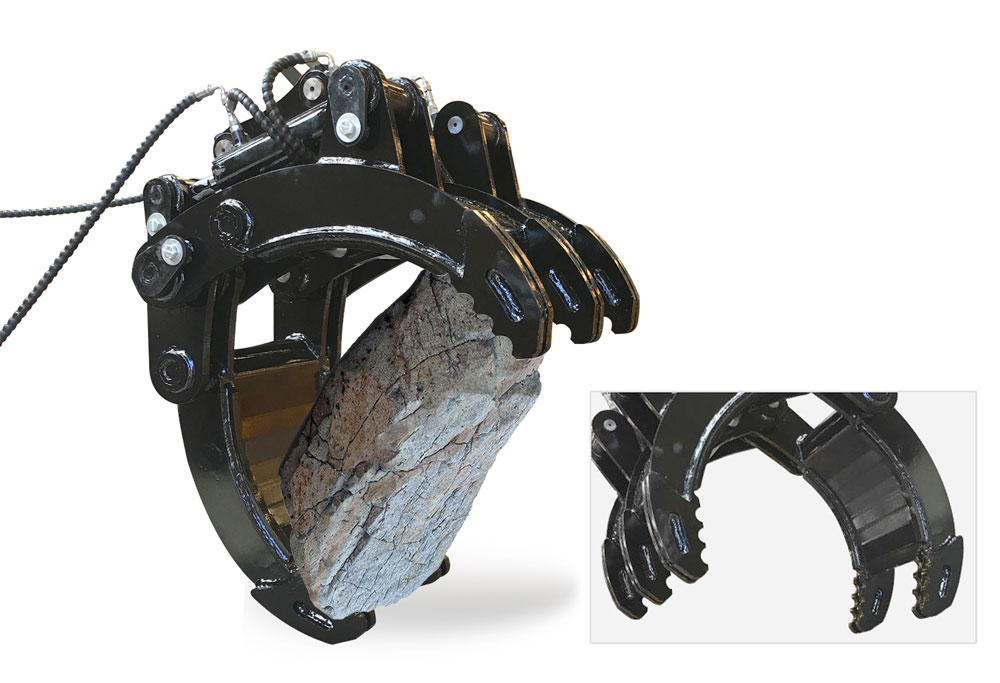

Rotating Wood Grapple
Hydraulic grapple to handle all sorts of materials in recycling or demolition applications using the strength of your excavator. It is available in a wide-range of widths and tine configurations.Each version made specifically for the user’s needs.
We're here to help: Easy ways to get the answers you need!
Hydraulic grapple to handle all sorts of materials in recycling or demolition applications using the strength of your excavator. It is available in a wide-range of widths and tine configurations.Each version made specifically for the user's needs. Grapple use a strategic arrangement of bearings, seals, o-rings, and collars in the main pivot to guard this critical area.
| Model | 3T | 5T | 8T | 12T | 20T | 30T |
| Weight (kg) | 255 | 365 | 435 | 720 | 1085 | 1430 |
| Max Opening Size (mm) | 714 | 825 | 856 | 1035 | 1155 | 1200 |
| High(mm) | 915 | 1012 | 1049 | 1 190 | 1400 | 1540 |
| Width(mm) | 590 | 673 | 715 | 830 | 1051 | 1110 |
| Length ( mm ) | 590 | 635 | 677 | 943 | 964 | 1060 |
Please send us your request and we will reply to you within 24 hours.
Reach out to us anytime and we'll happily answer your questions.
Tel
+86-371-86663455
Excavator mechanical wood grapple is driven by the excavator bucket cylinder without the need to add additional hydraulic blocks and pipelines. Mechanical grapple is suitable for waste metal treatment, stone, wood loading and unloading and handling.
Special for the mantle rock, clay, sandy stratum and weathered layer. Ripper also can be named digging ripper. It is used for digging hard soil, frozen soil, soft rock, weathered rock and cracked rock. It also can remove the root of the trees and other barries.
Demolition grapple is a light duty hydraulic grapple that can be used to the maximum extent for various sorting and handling jobs. Demolition grapple can also be applied to some lighter demolition tasks, such as the demolition of brick and wood structures.
This Crusher Bucket is suitable for the crushing of granite, basalt, pebble, limestone and other rocks. BKM Crusher Bucket is suitable for the crushing of all concrete and building demolition solid waste, and it is handy for dealing with hard rock.Heavy-duty structure, can work under high load for a long time.
