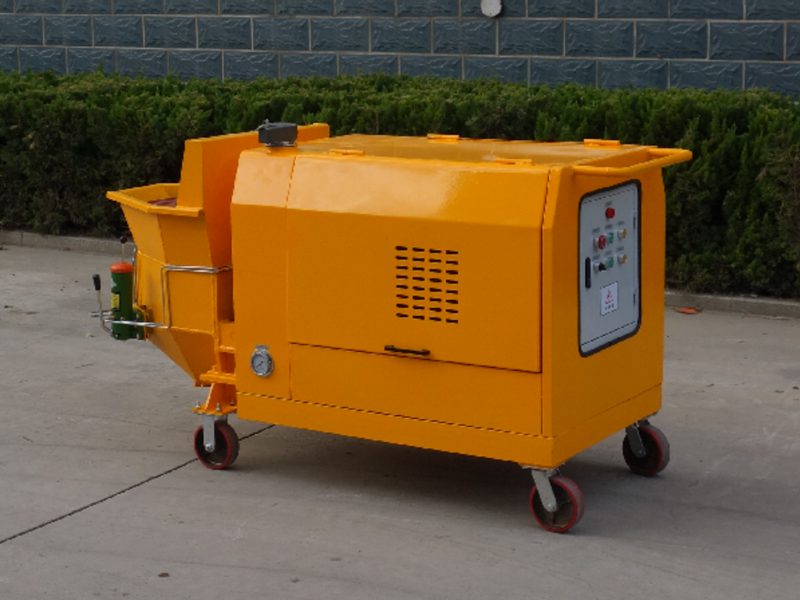

Shotcrete Pump Machine PBS5-03
With the development of urban, rural and township construction, the height of buildings is increasing, and people’s demand for plastering the interior and exterior walls of high-rise buildings is also increasing. The traditional practice is to build scaffolding, transport the slurry, etc.
We're here to help: Easy ways to get the answers you need!
With the development of urban, rural and township construction, the height of buildings is increasing, and people's demand for plastering the interior and exterior walls of high-rise buildings is also increasing. The traditional practice is to build scaffolding, transport the slurry, etc. to the corresponding floors, and then carry out the coating operation. In order to reduce the workload of workers, LICH launched the PB series plunger-type mortar pump, which does not need to place mortar and so on through the derrick, and directly transports and pumps concrete, mortar and so on to the construction site, which reduces the pressure of vertically transporting mortar in high-rise buildings, realizes mechanized operation, reduces the labor intensity of workers, saves manpower, and improves work efficiency.
1. High outlet pressure, vertical conveying height can reach 150 meters
2. The wearing parts are made of high hardness and wear-resistant alloy materials, which have long service life and do not need to be replaced frequently.
3. Low operation and maintenance costs, avoiding the high maintenance costs in the use of screw pumps
4. The electrical part adopts imported original devices and PLC control, and installs long-distance wireless remote control, convenient and reliable
5. Adopting pipeline pressure compensation device, smooth direction change, to ensure the smoothness of the slurry spraying operation
6. With anti-pump function, greatly reducing the blockage of the pipeline
7. Adopting wet spraying, less dust, less rebound, reduce the working environment pollution
8. Even spraying, continuous operation, suitable for all kinds of walls
| Items | Units | PBS5-03
Parameters |
|
| Performance and technical information | Maximum output | m3/h | 5 |
| Maximum pumping pressure | MPa | 3 | |
| Maximum conveying distance (vertical/ horizontal) | m | 35/100 | |
| Distribution valve type | S Valve | ||
| Concrete cylinder diameter × stroke length | mm | Ф120×300 | |
| Hopper capacity× hopper height | L×mm | 100×810 | |
| Maximum aggregate diameter | mm | 5 | |
| Outlet inner diameter | mm | Ф100 | |
| Delivering pipe inner diameter | mm | Ф38/Ф50 | |
| Engine system | Electric engine model | HM2-132M-4 | |
| Rated power | KW | 7.5 | |
| Rated current | A | 15.4 | |
| Hydraulic system | Hydraulic system | Open loop | |
| Pumping system pressure | MPa | 11 | |
| Hydraulic tank capacity | L | 50 | |
| Matching air compressor | Air compressor displacement | m3/min | 1-2 |
| Air compressor pressure | MPa | 0.7 | |
| Dimensions | Length×width×height | mm | 1670×600×1290 |
| Total weight | Kg | 450 | |
